Heater Control Unit Replacement

  1. Remove the CENTER FASCIA PANEL .
  2. Loosen the heater control mounting screw, remove the heater control unit (A).

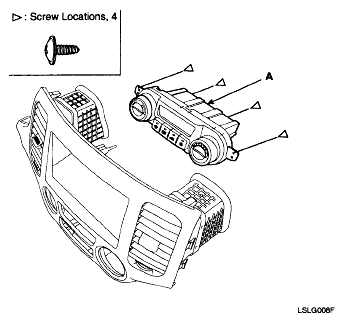

    Fig 1: Identifying Heater Control Unit
    G04806102Courtesy of KIA MOTORS AMERICA, INC.
  3. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector is plugged in properly.
