Trunk Trim: Replacement

  1. Remove the trunk trim.
    NOTE:
    • Put on gloves to protect your hands.
    • When removing trim components that require prying, use a suitable trim tool, not a screwdriver. Gently pry on the component to avoid damage.
    • Take care not to bend or scratch the trim and panels.
  2. Installation is the reverse of removal.
    NOTE:
    • Replace any damaged clips.

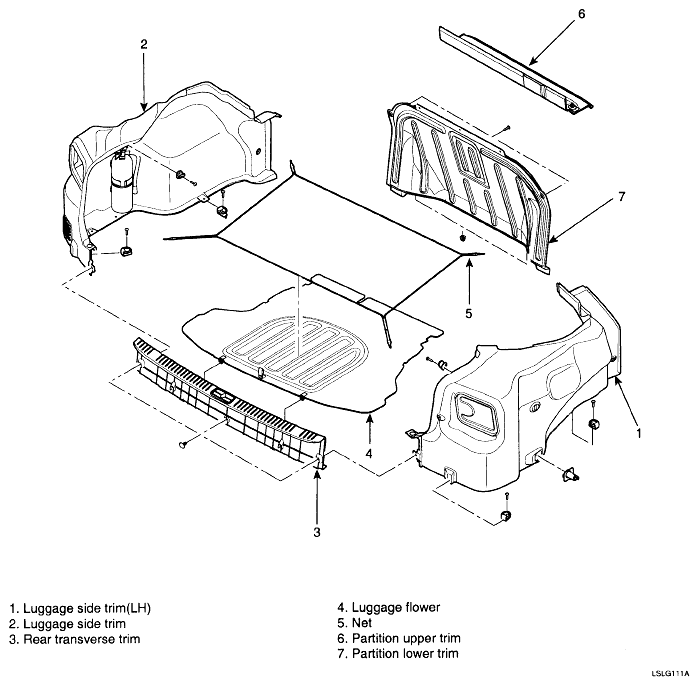

    Fig 1: Identifying Trunk Trim Components
    G04806125Courtesy of KIA MOTORS AMERICA, INC.
