Front Disc Brake: Components
WARNING: This page is about a different car, the 2007 Kia Optima, 2007 Kia Magentis, 2006 Kia Optima, and 2006 Kia Magentis. However, it is still accessible from the selected car via links, so may be relevant.

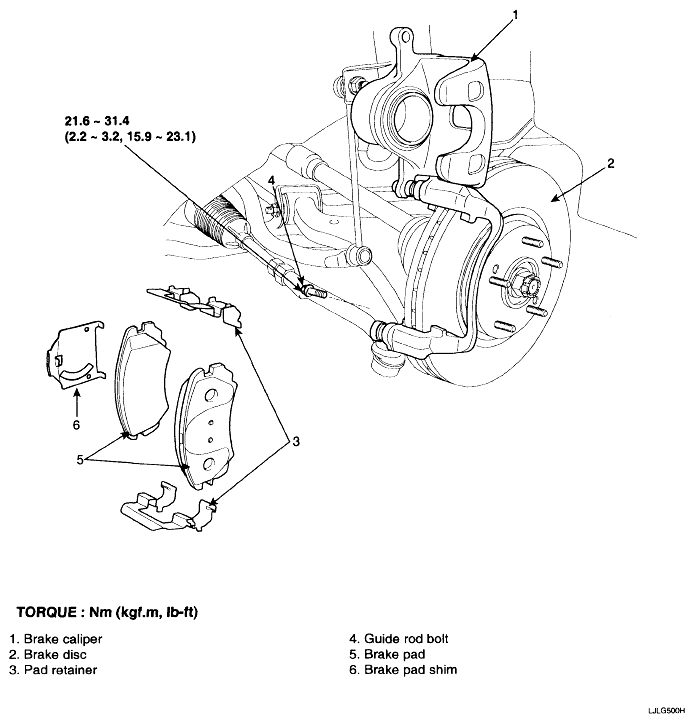

Fig 1: Front Disc Brake Replacement Components With Torque Specifications (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

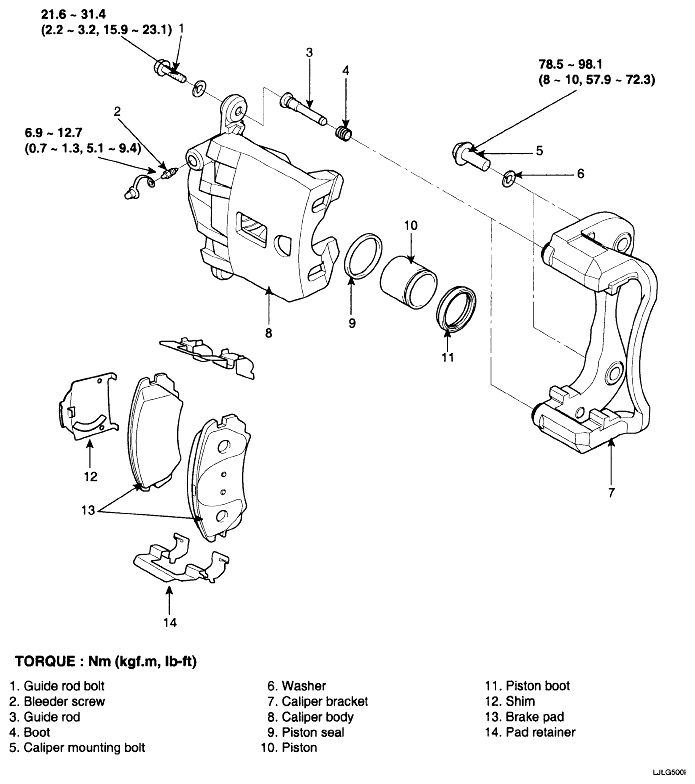

Fig 2: Front Disc Brake Replacement Components With Torque Specifications (2 Of 2)
