Front Bumper: Service and Repair

REPLACEMENT

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
- Take care not bend or scratch the cover and other parts.

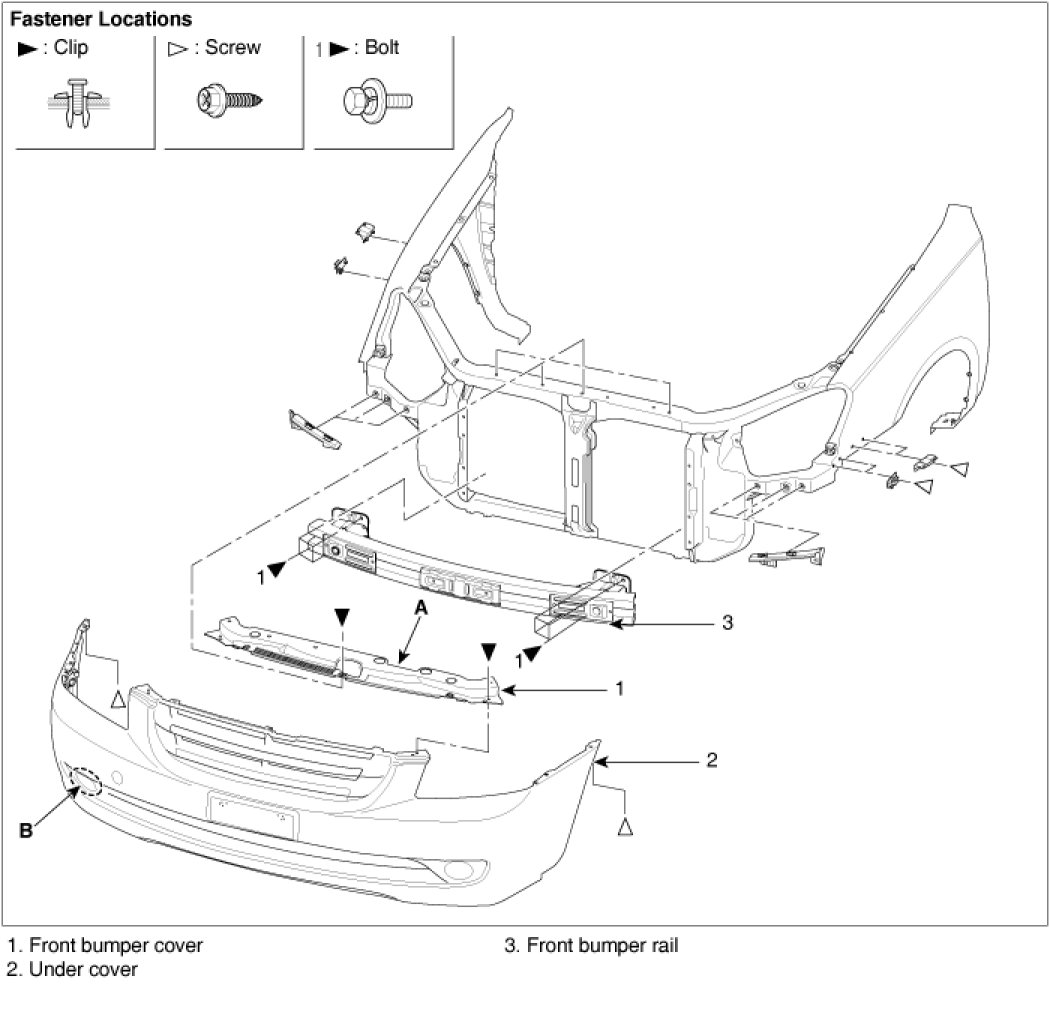

1. Remove the upper cover (A).
2. Loosen the front bumper cover mounting screws and clips.
3. Remove the front bumper cover and rail.
4. Disconnect the fog lamp connector (B).
5. Installation is the reverse of removal.
