Power Seat Switch: Testing and Inspection





INSPECTION

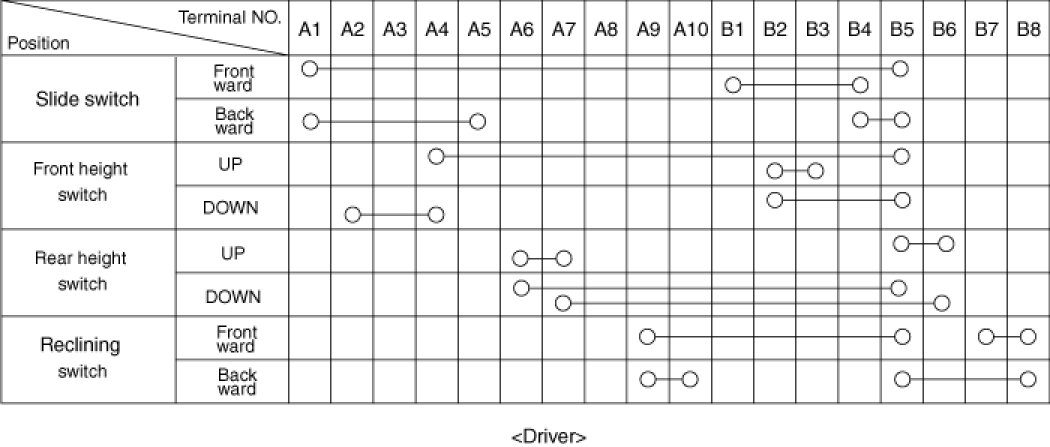

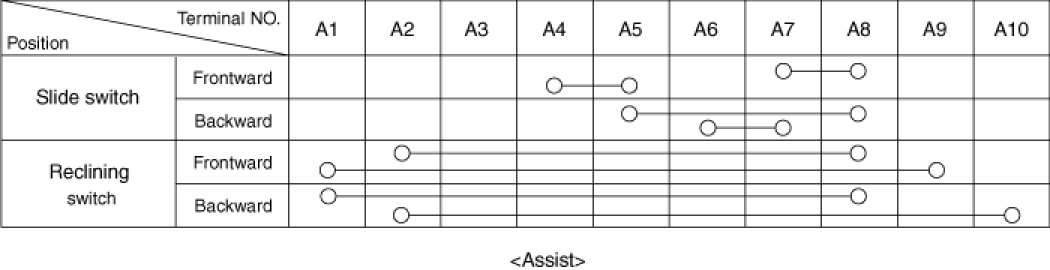

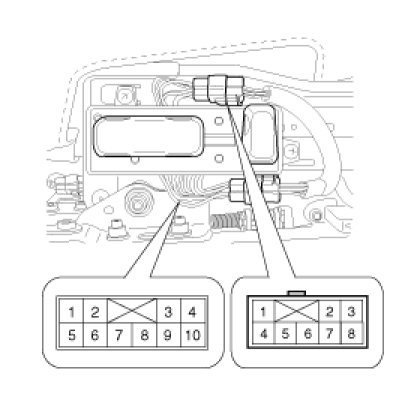

With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.
