Seat Temperature Element: Testing and Inspection

INSPECTION

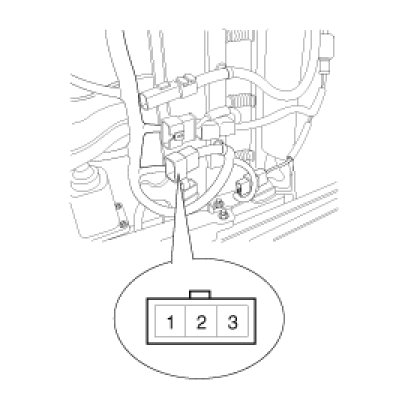

1. Check for continuity and measure the resistance between No.1 and NO.3 terminals.





Standard value: 2.45Ohms ± 10%
(Cushion: 1.2Ohms ± 10%, Back: 1.2Ohms ± 10%)





2. Operate the seat warmer after connecting the 3P connector, and then check for the thermostat by measuring the temperature of seat surface.
3. Check for continuity between the terminals after disconnecting the 3P connector.

Standard value :
28 ± 3.5°C(Continuity), 37 ± 3.0°C(Short)
