Rear Seat

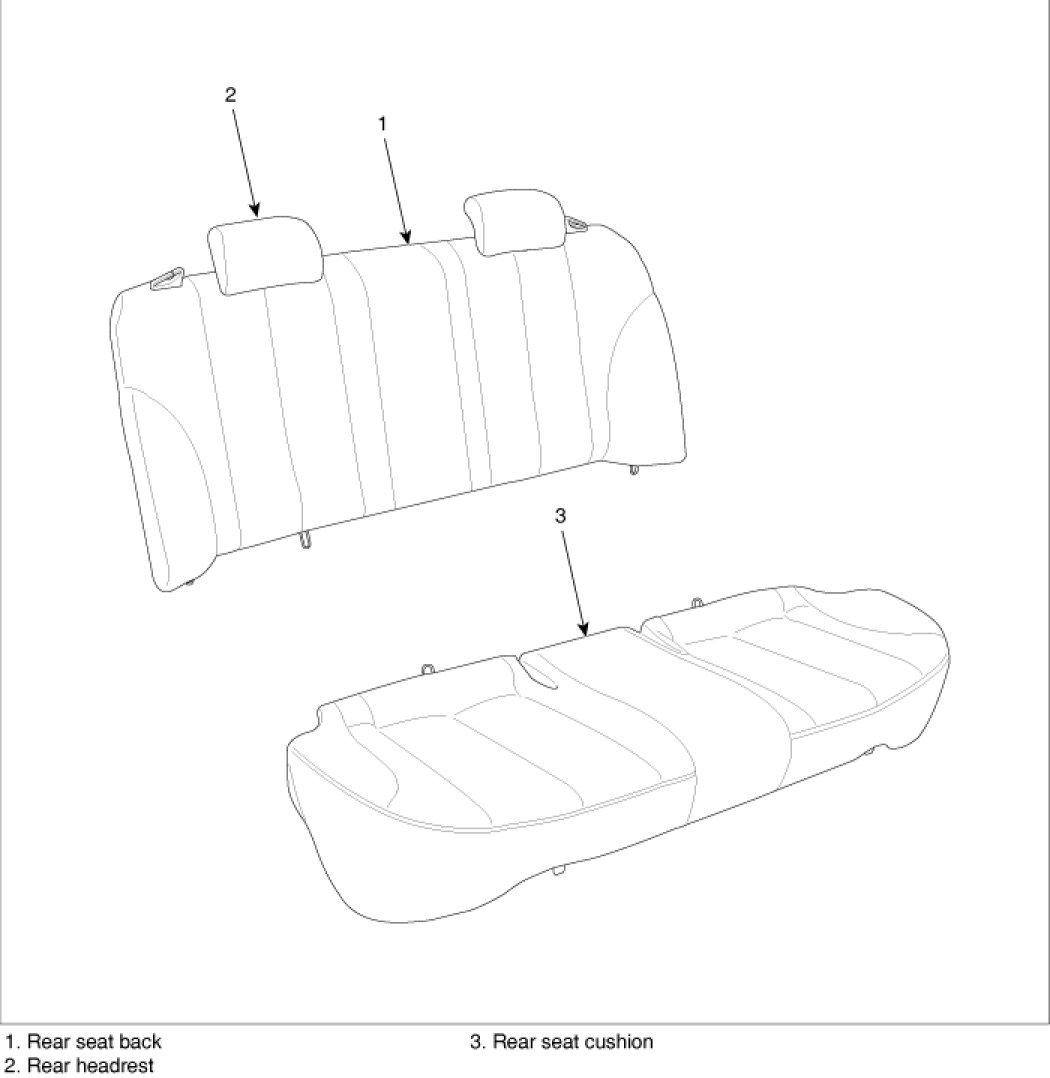

COMPONENTS






REPLACEMENT

SEAT ASSEMBLY REPLACEMENT

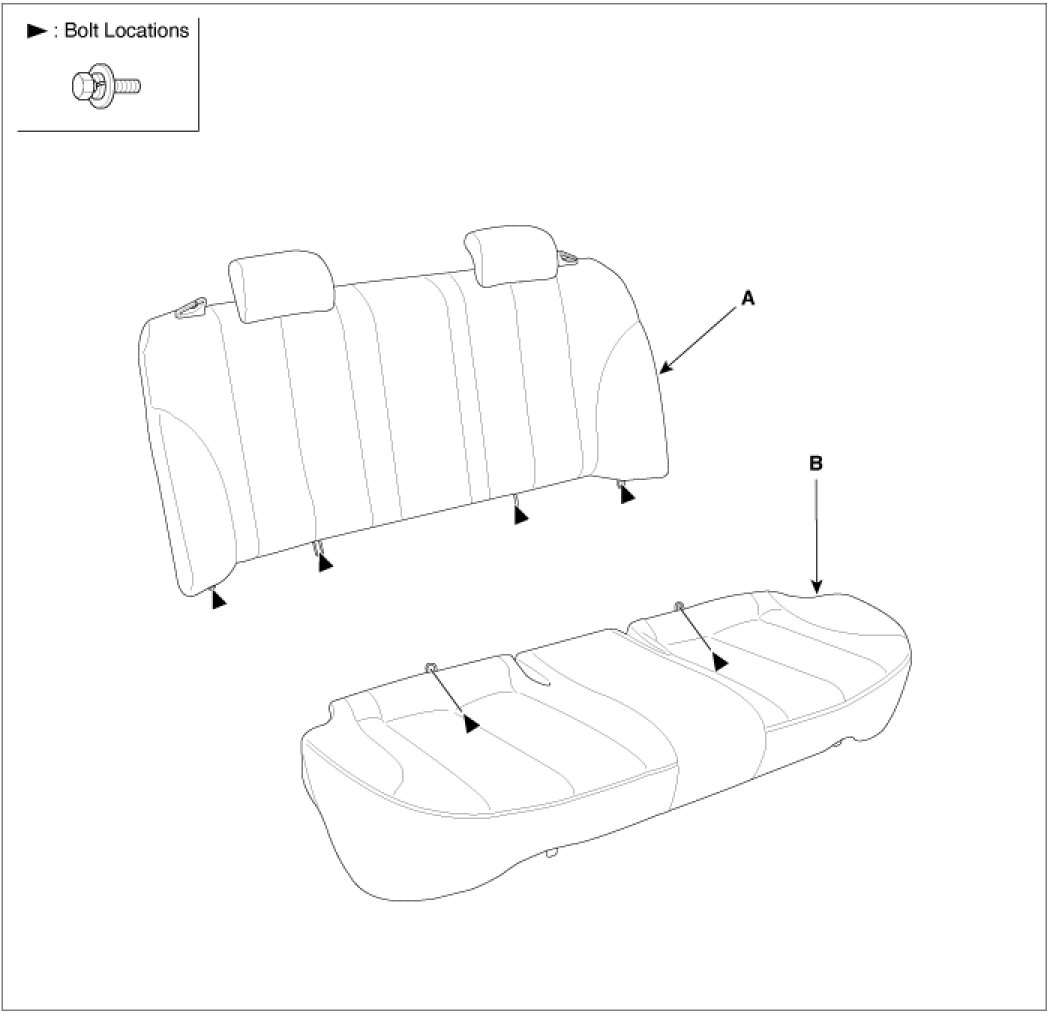

1. Loosen the mounting bolt, then remove the rear seat assembly.
2. Installation is the reverse of removal.





ARMREST REPLACEMENT

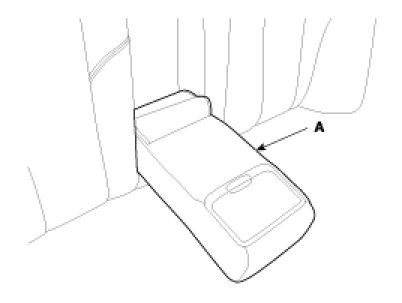

1. Loosening the armrest mounting nuts.
2. Remove the armrest (A).




3. Installation is the reverse of removal.
