ESP(Electronic Stability Program) System

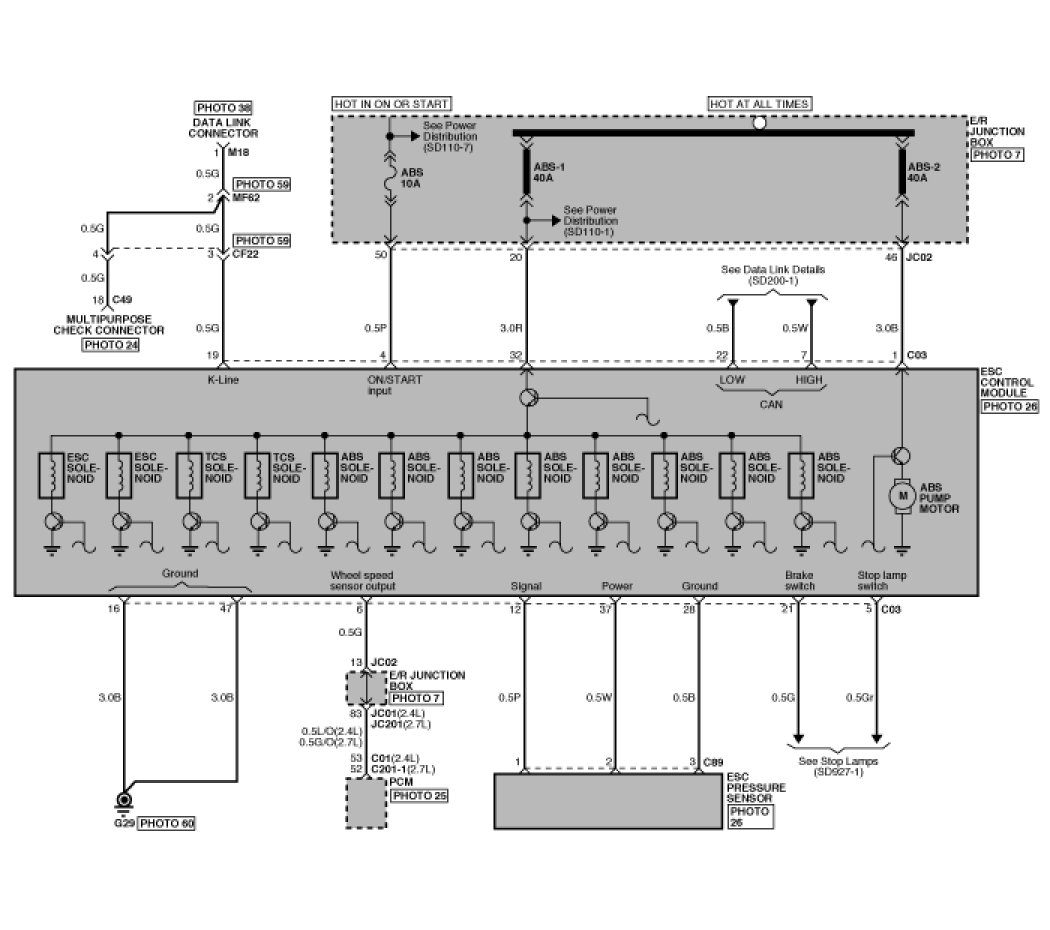

CIRCUIT DIAGRAM - ESC(1)

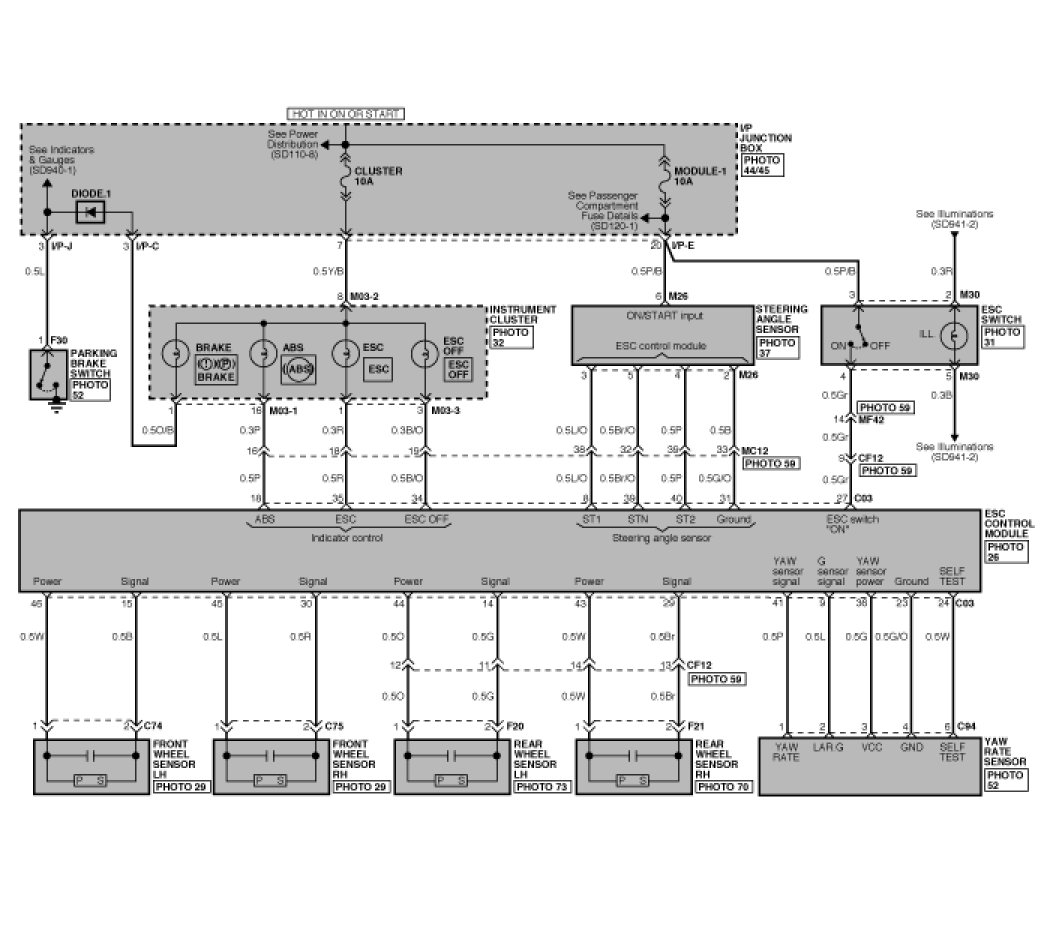

CIRCUIT DIAGRAM - ESC(2)

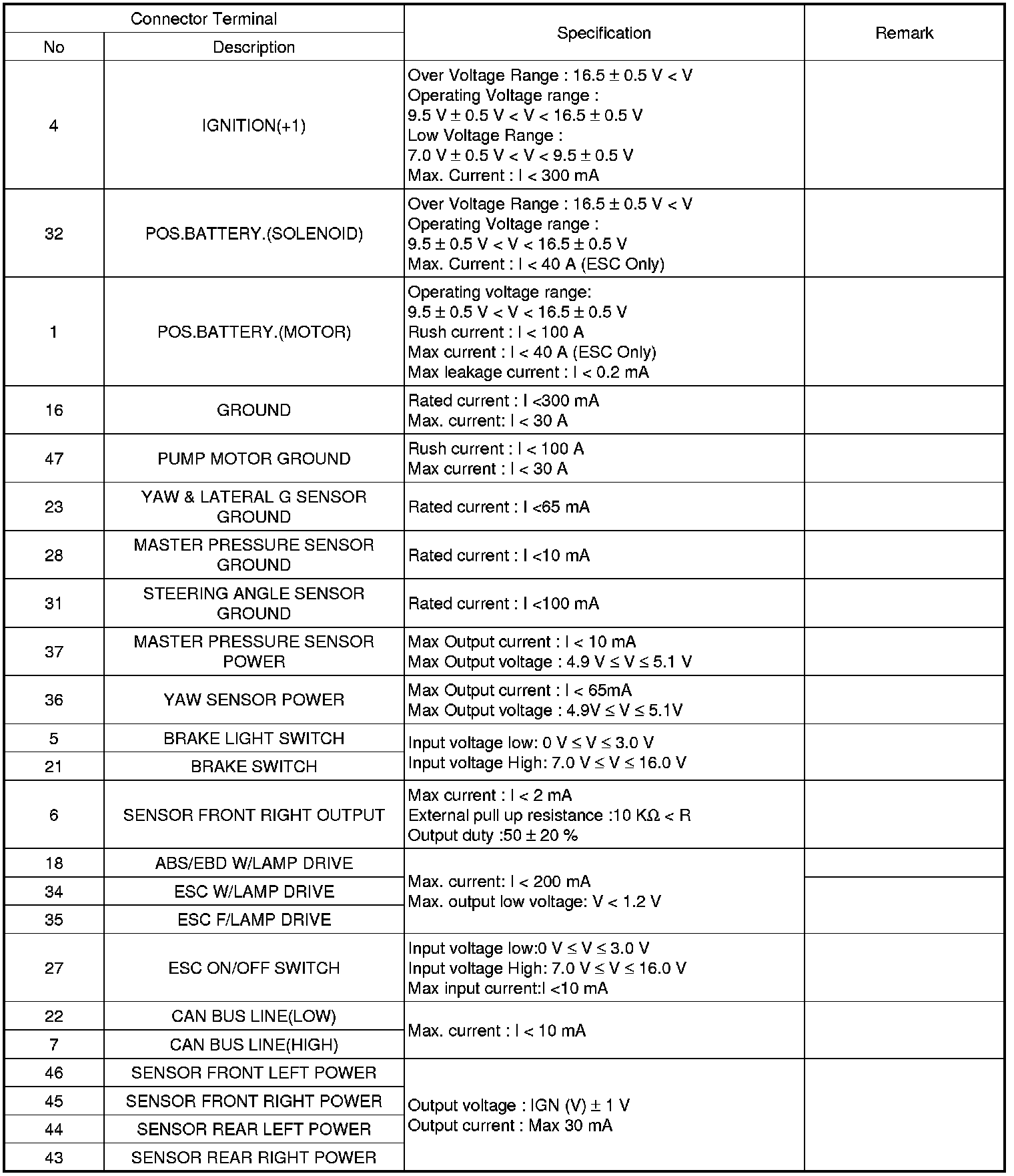

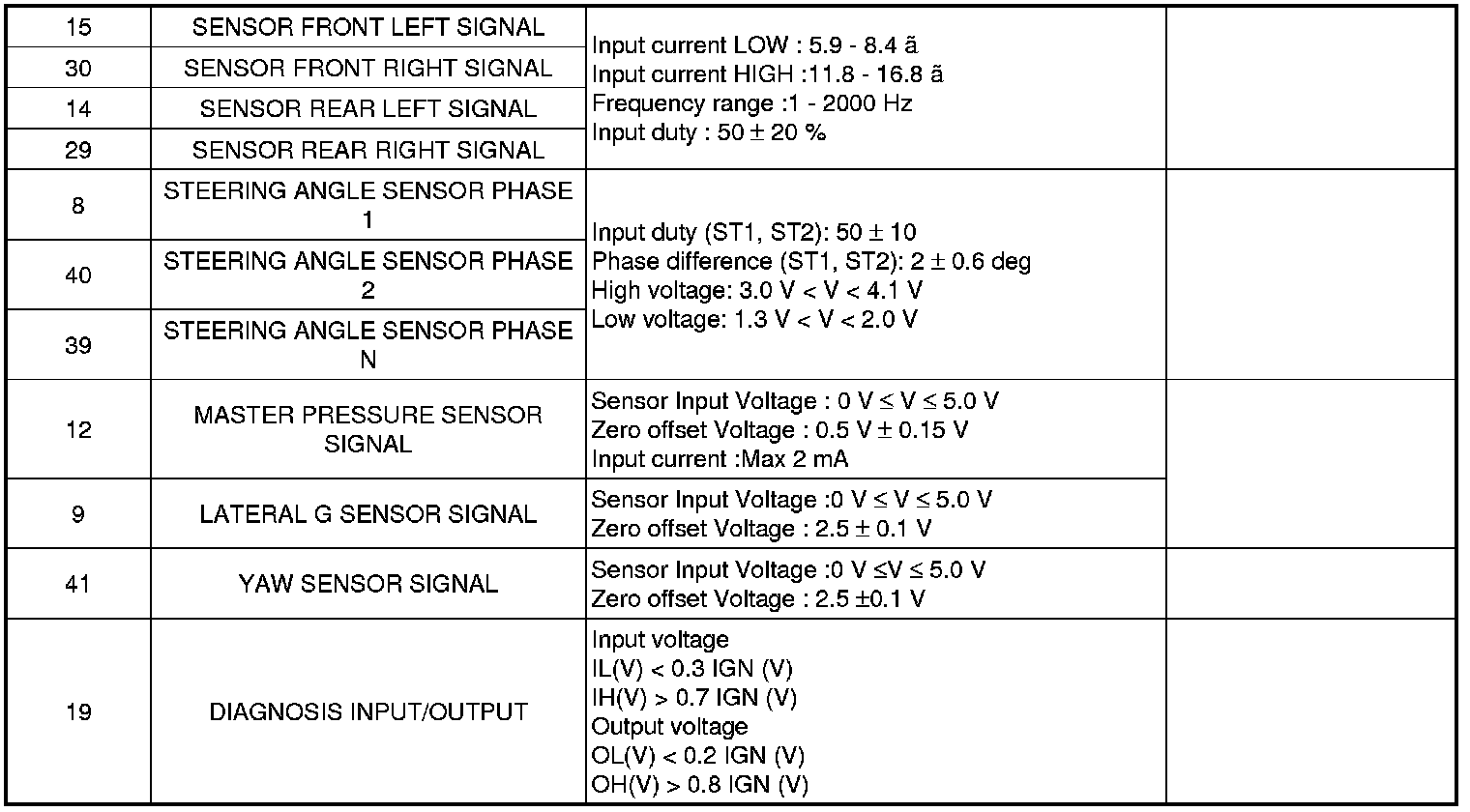

ESC connector input/output
