Camshaft Bearing Cap

Camshaft Bearing Cap

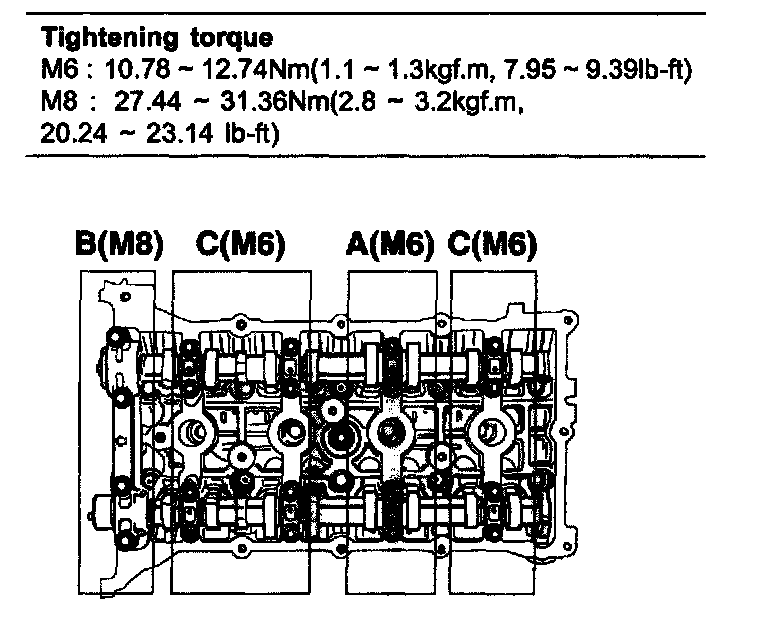

Install camshaft bearing caps in their proper locations.
Tightening order.
Group A -> Group B -> Group C.
