Water Pump

Water Pump

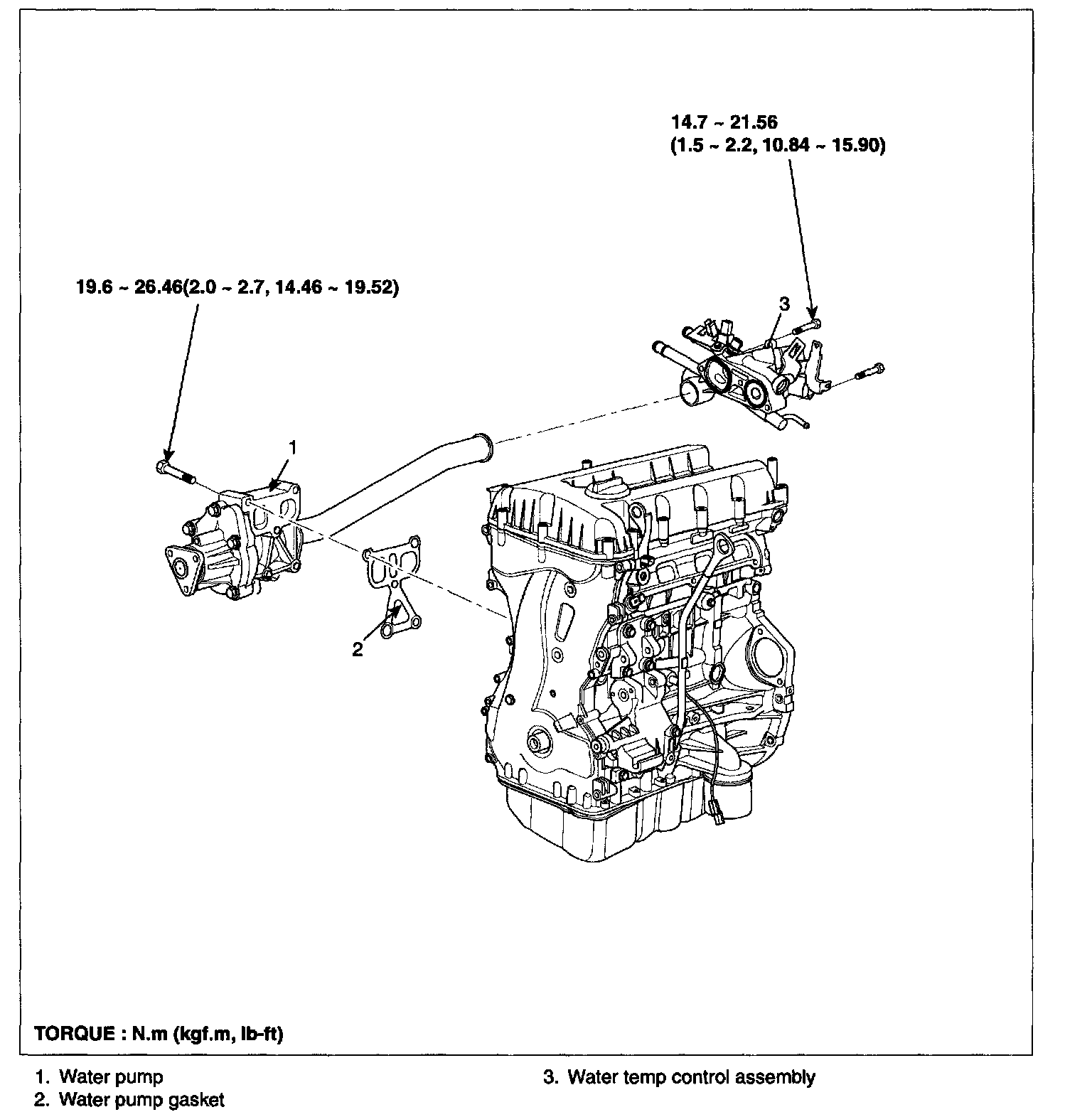

Install the water pump.

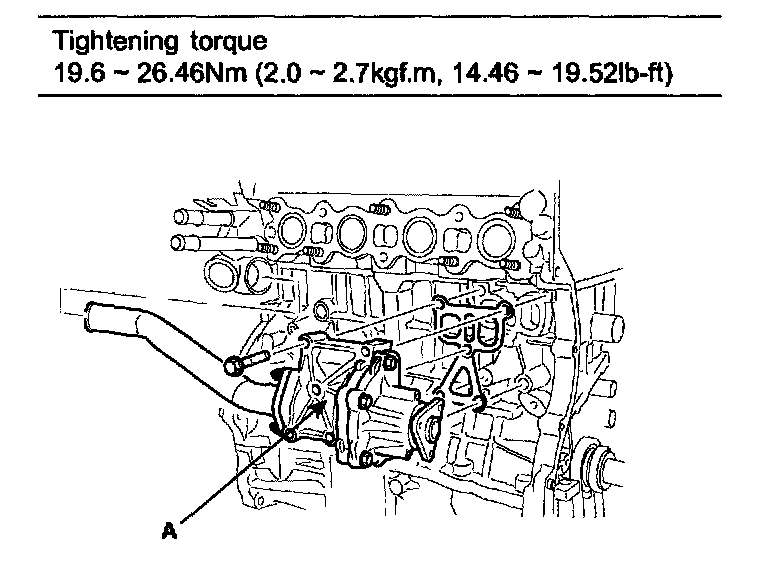

Install the water pump (A) and a new gasket with the 5 bolts.
Install water inlet pipe nut.
Tightening torque 19.6 - 26.46 Nm (2.0 - 2.7 kgf.m, 14.46 - 19.52 ft. lbs.)
