Components (1)

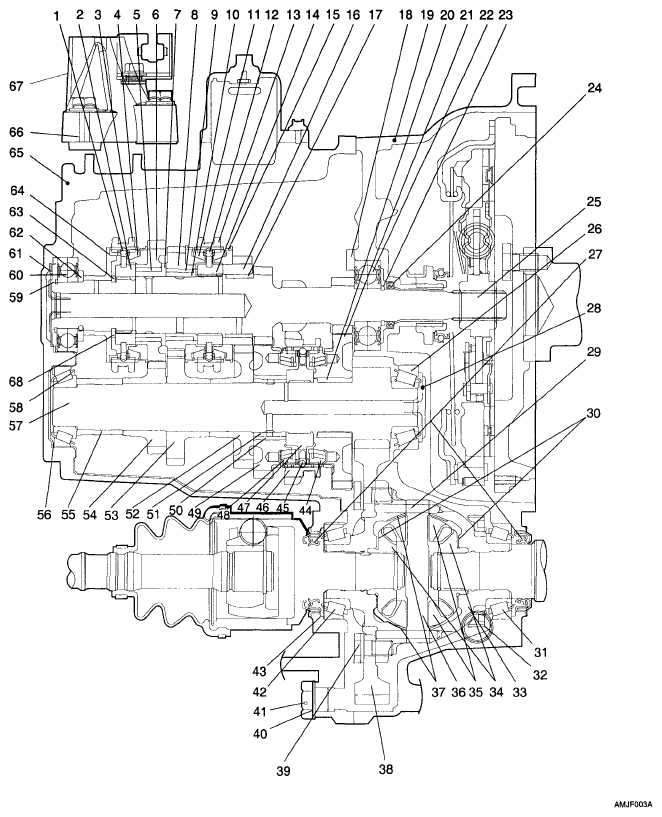

Fig 1: Identifying Manual Transaxle Components
G04862442Courtesy of KIA MOTORS AMERICA, INC.

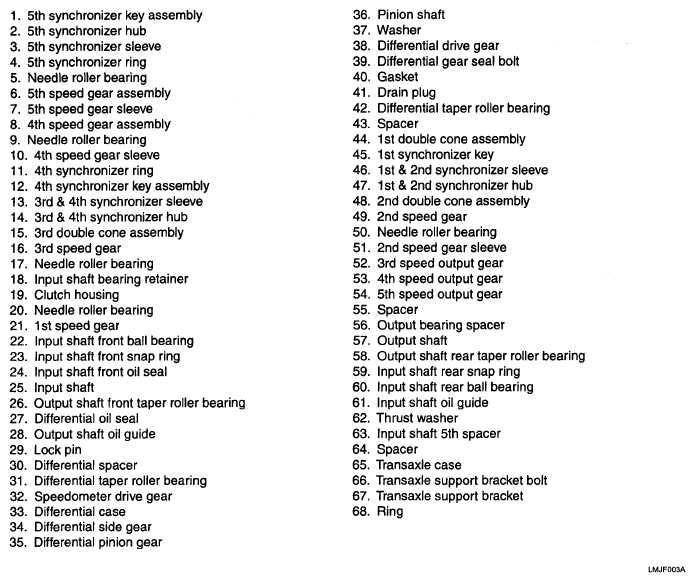

Fig 2: Manual Transaxle Components Reference
G04862443Courtesy of KIA MOTORS AMERICA, INC.
