Axle Shaft Assembly





SPECIFICATION

DRIVESHAFT+





BJ : Birfield Joint
UTJ : U-Type Tri-pod Joint

Inner : On transaxle side
Outer : On tire side

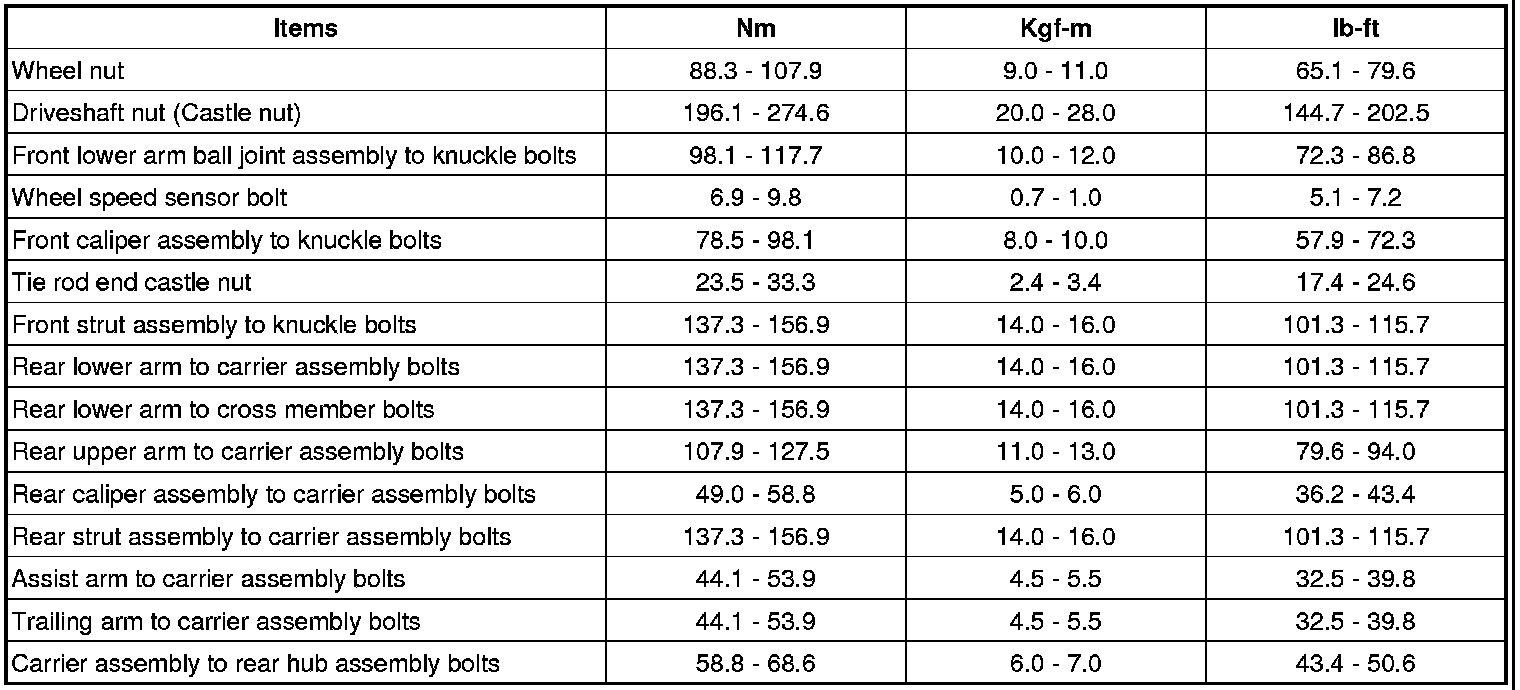

TIGHTENING TORQUE
