Transmission Temperature Sensor/Switch: Testing and Inspection





INSPECTION

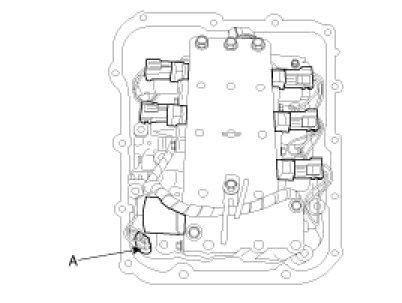

1. Remove the oil temperature sensor(A).




2. Measure the resistance between the terminal 1 and 2 of the sensor connector.









3. If the value is out of the specification, replace the oil temperature sensor.
