Connector Views








COMPONENTS

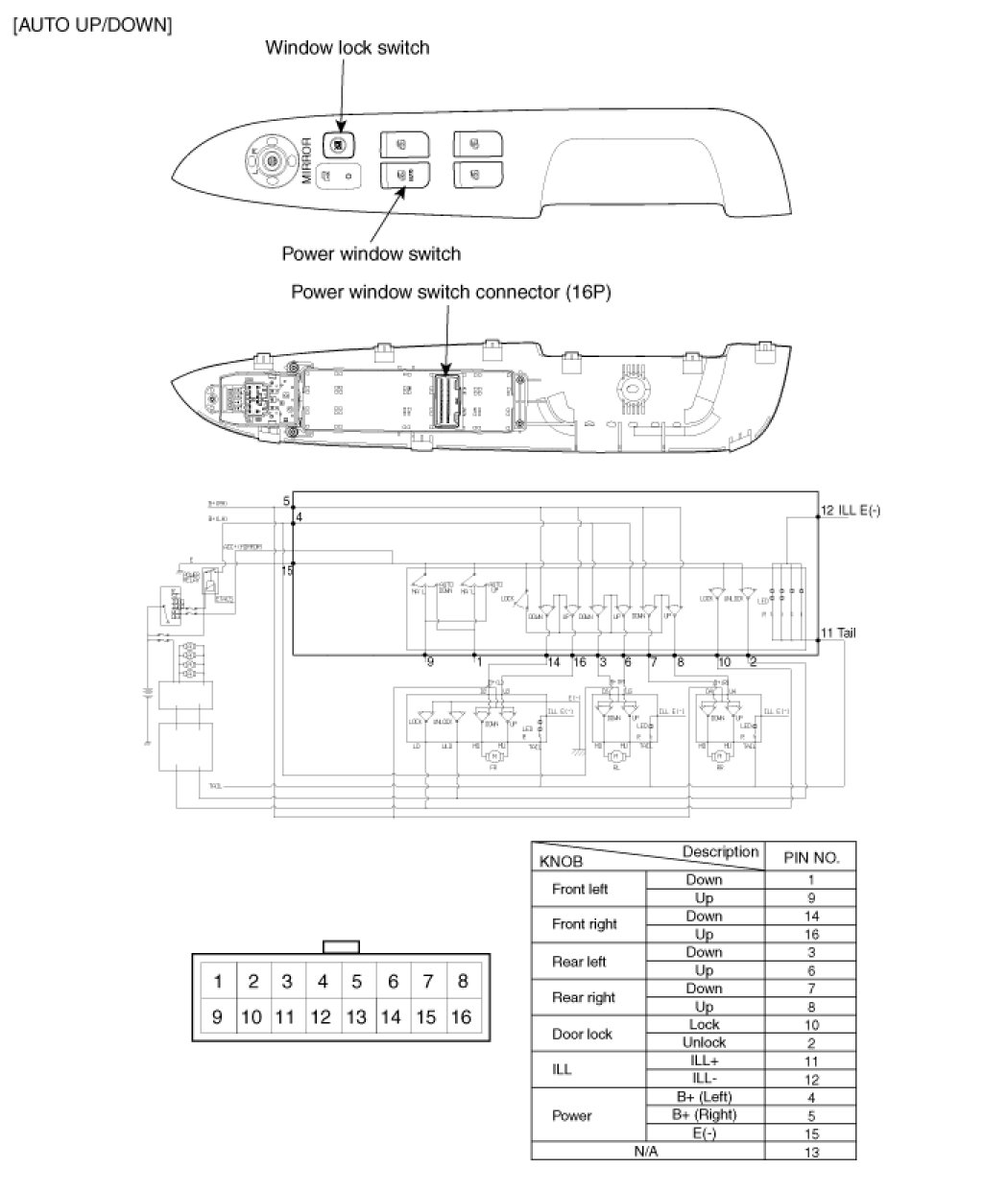

POWER WINDOW MAIN SWITCH

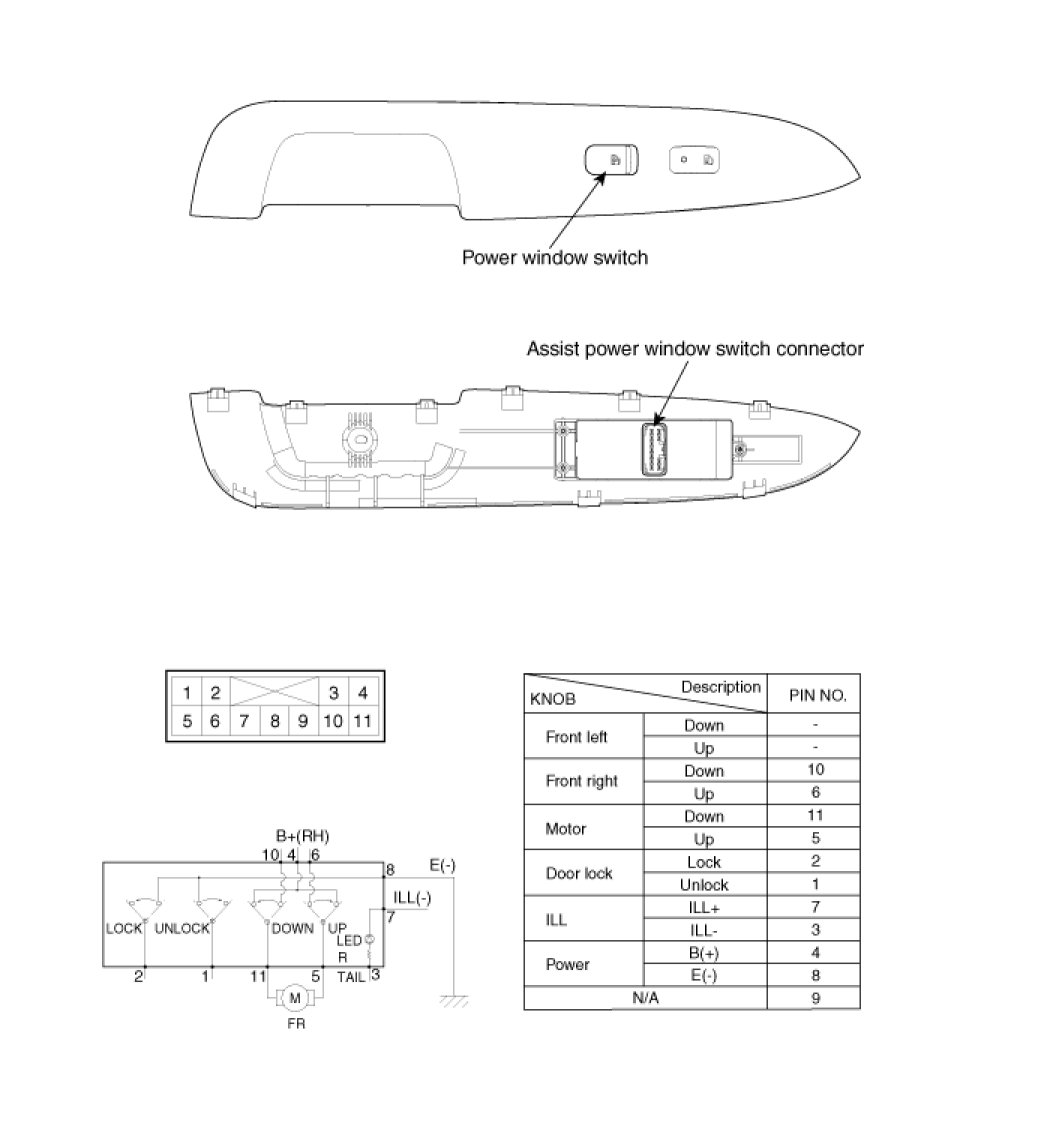

ASSIST POWER WINDOW SWITCH

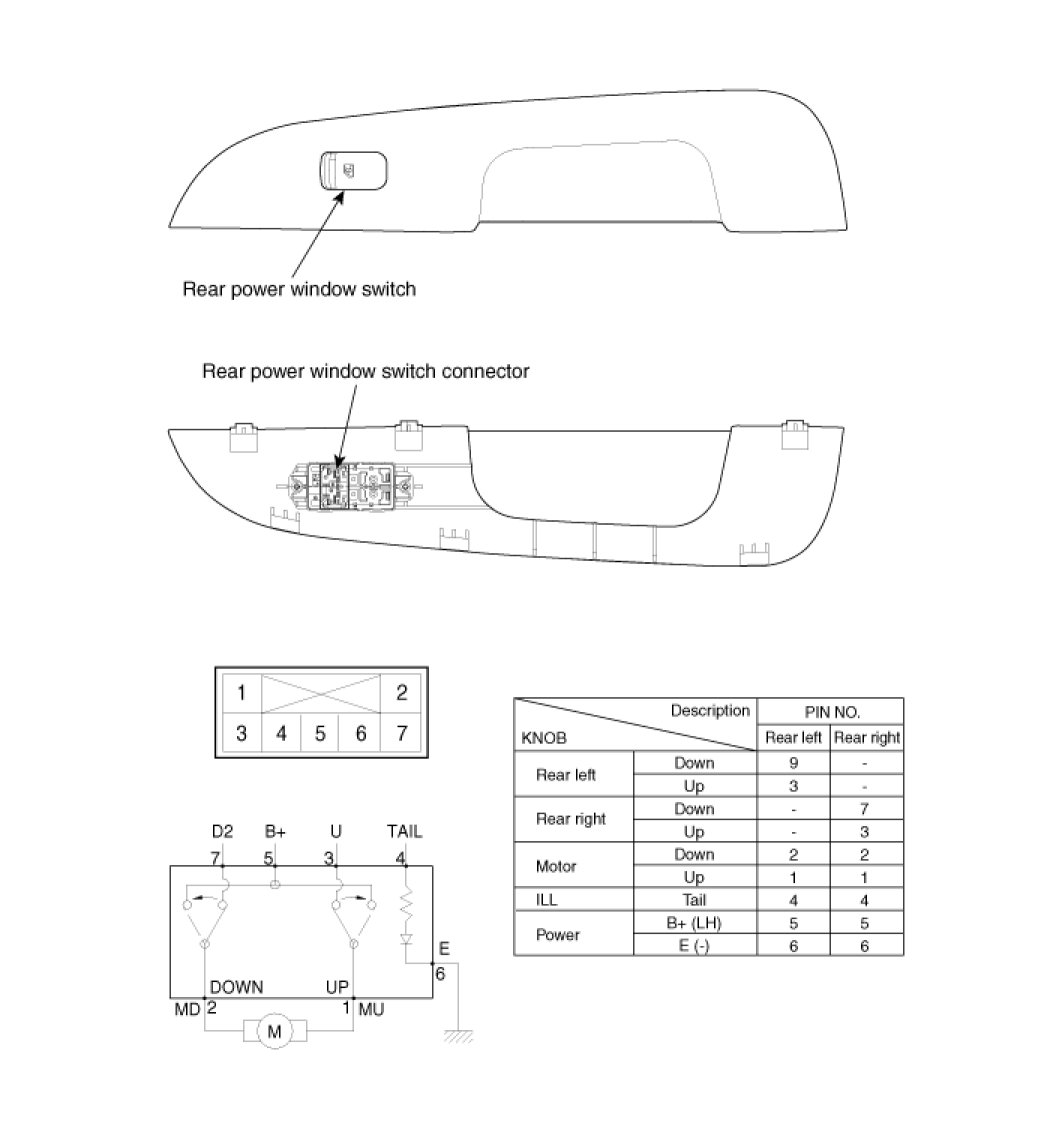

REAR POWER WINDOW SWITCH
