Schematic Diagram

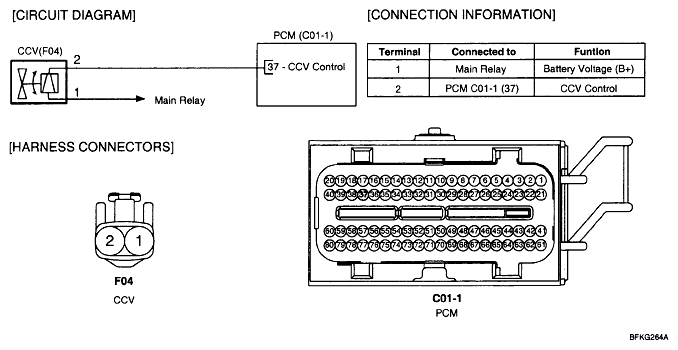

Fig 1: Identifying Canister Close Valve (CCV) Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
