Windshield Washer Motor: Service and Repair












REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Remove the front bumper cover.

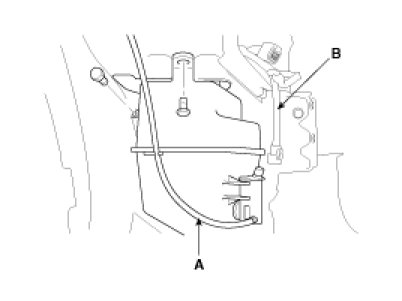

3. Remove the washer hose (A) and the washer motor connector (B).
4. Remove the washer reservoir after removing 2 bolts.




5. Installation is the reverse of removal.
