Starting System: Overhaul: Notes

To assist in overhaul, use illustration. See Fig 1.

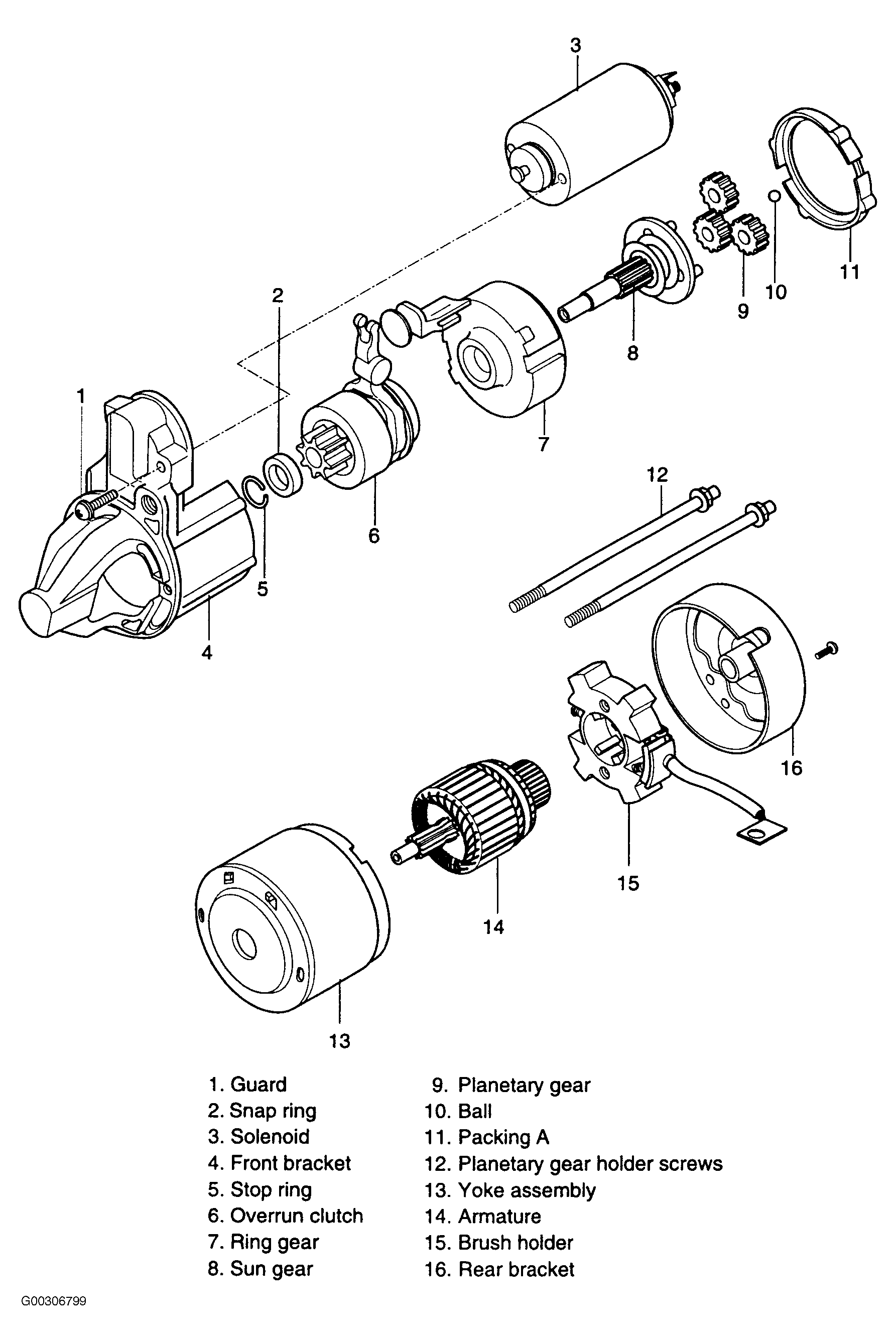

Fig 1: Exploded View of Starter
G00306799Courtesy of KIA MOTORS AMERICA, INC.
