Main Bearing Cap Bolt

Bearing Cap Bolts

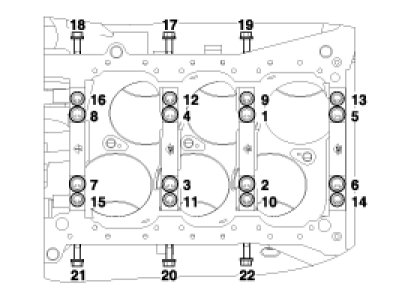

Install and uniformly tighten the bearing cap bolts, in several passes, in the sequence shown.

Tightening torque
Main bearing cap bolt
49.00 Nm(5.0 kgf.m, 36.16 lb-ft) + 90° (1 - 8)
19.60 Nm(2.0 kgf.m, 14.46 lb-ft)+ 120° (9 - 16)
29.40 - 31.36 Nm(3.0 - 3.2 kgf.m, 21.70 - 23.14 lb-ft) (17 - 22)


NOTE:
- Always use new main bearing cap bolts.
- If any of the bearing cap bolts are broken or deformed, replace it.
