Ignition Switch: Testing and Inspection





Inspection

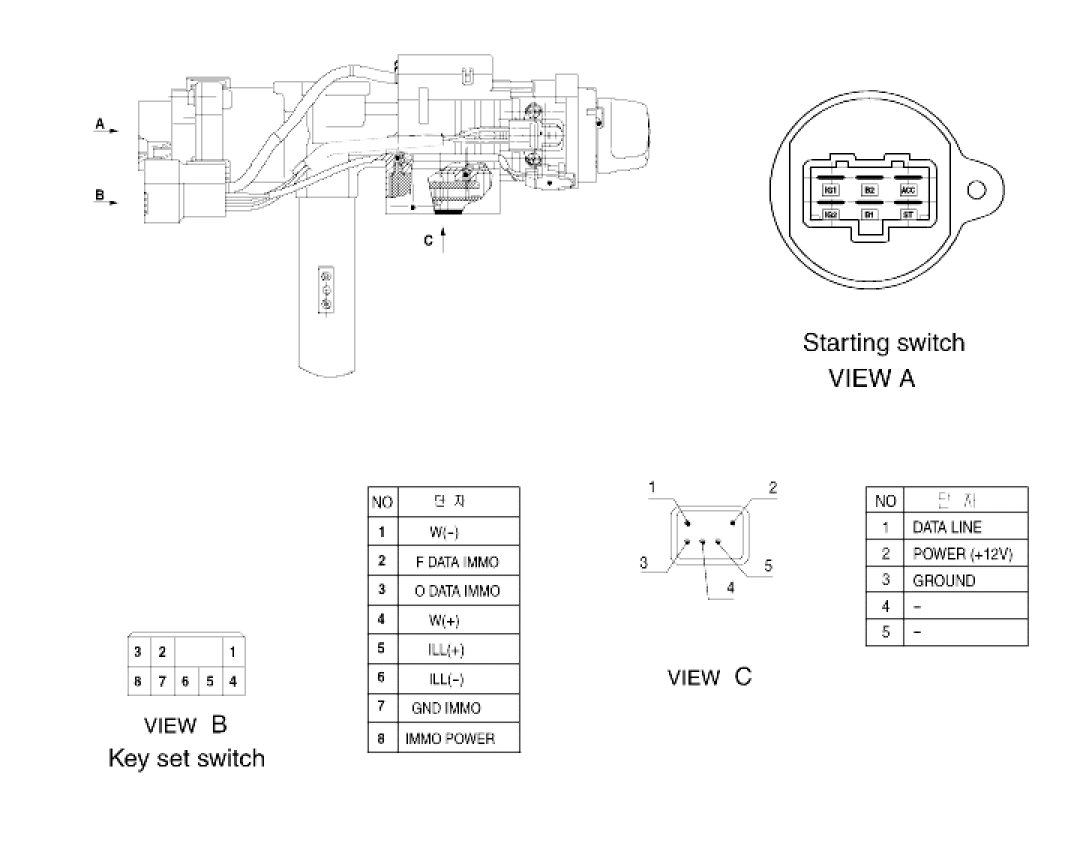

1. Disconnect the connector under the steering column.

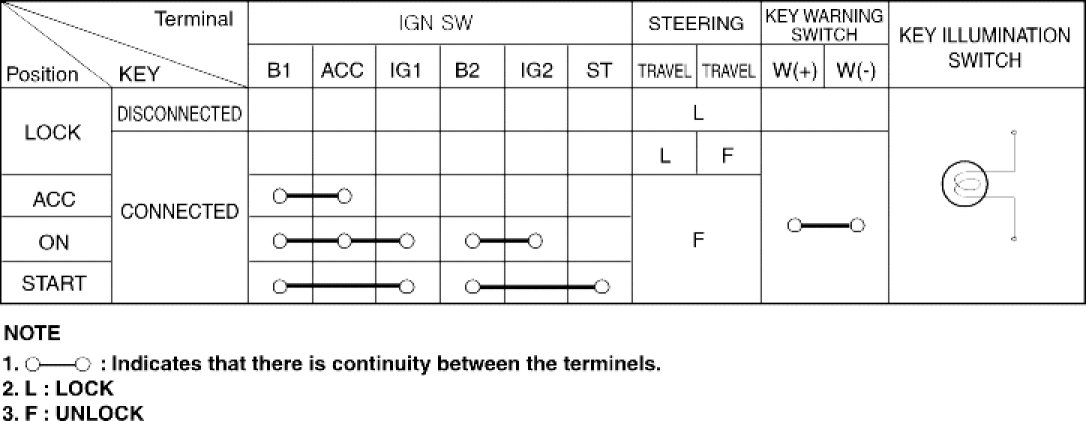

2. Check the switch continuity between the terminals.
3. If continuity is not as specified, replace the switch.
