Evaporative Emission Control System: Components

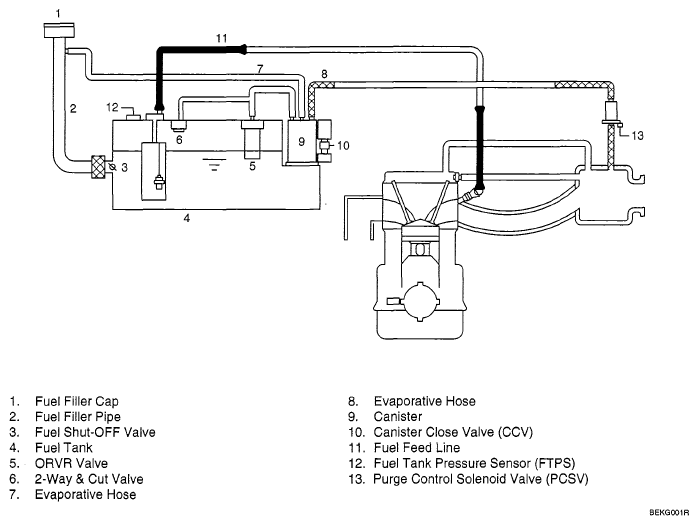

Fig 1: Evaporative And ORVR Emission Control System Diagram
G05116311Courtesy of KIA MOTORS AMERICA, INC.
