Optima EX, 2.7 4
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Communication Devices
>>
BCM (Body Control Module)
>>
Body Control Module (BCM)
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

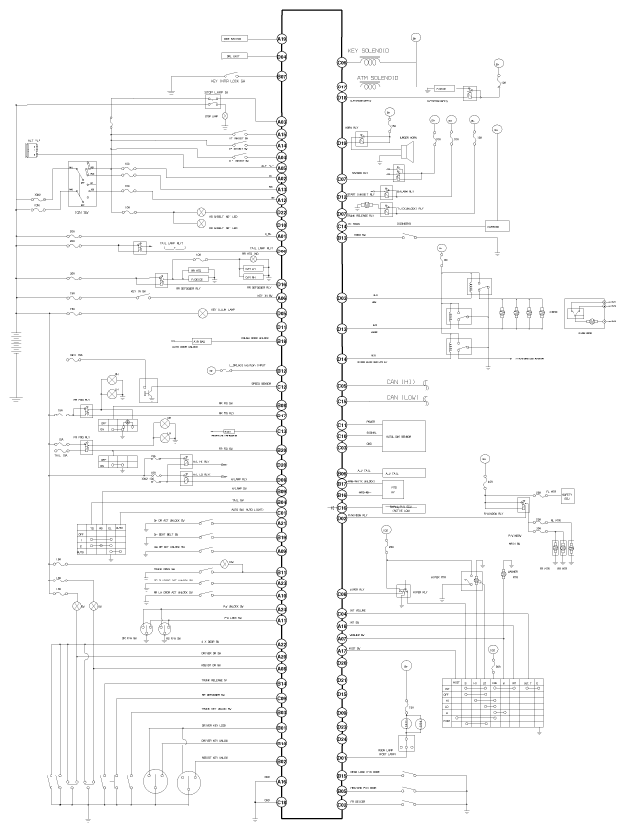

Circuit Diagram
Fig 1: Body Control Module Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
