Components and Components Location: Components

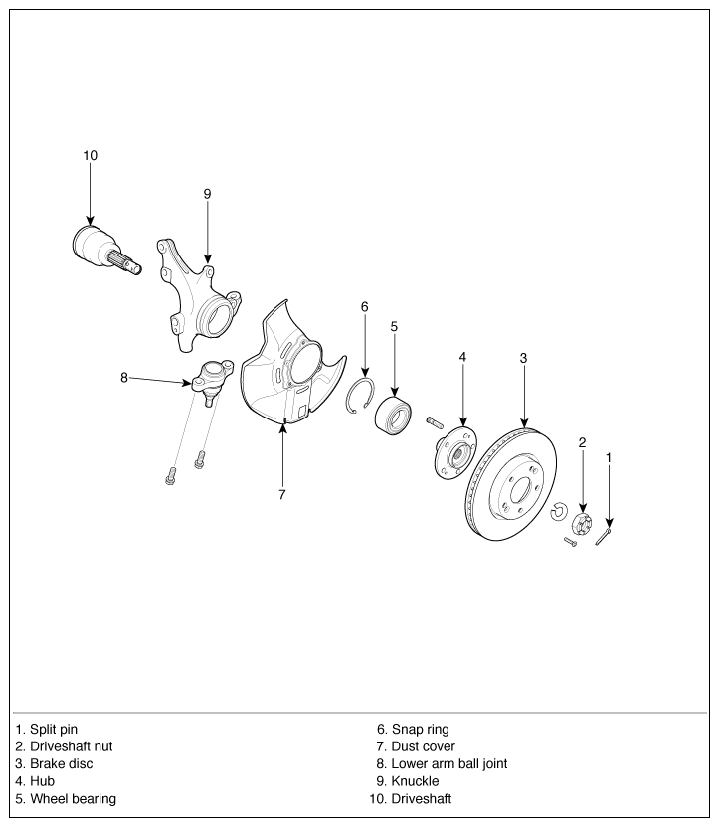

Fig 1: Identifying Front Hub Components

G06366263

Courtesy of KIA MOTORS AMERICA, INC.
