Automatic Transmission/Transaxle





AUTOMATIC TRANSAXLE HYDRAULIC CIRCUIT

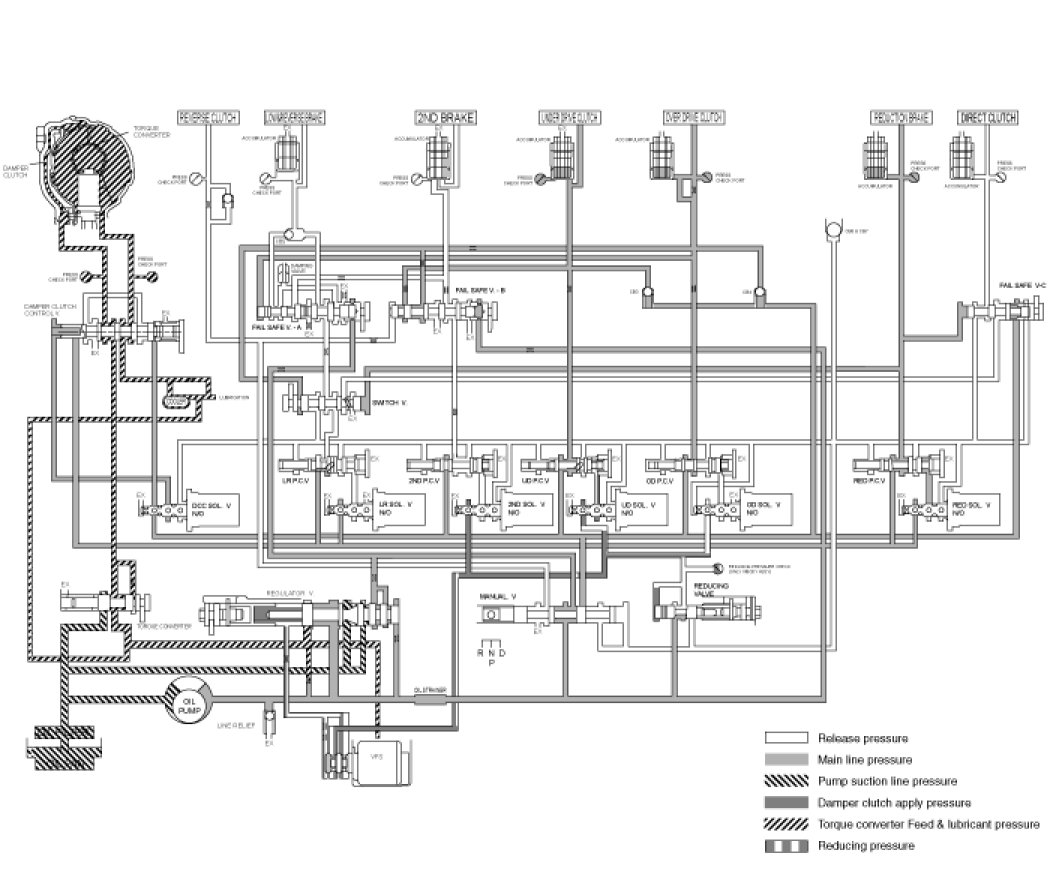

P/N

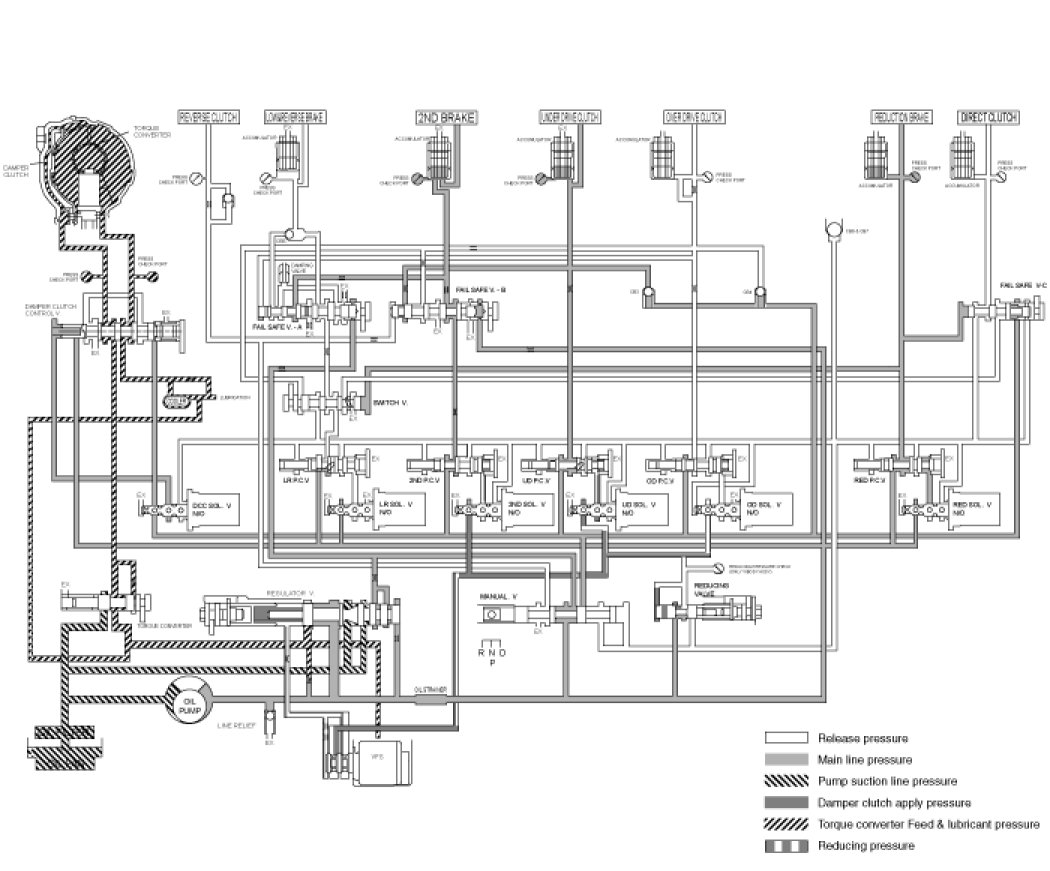

D(1 RANGE)

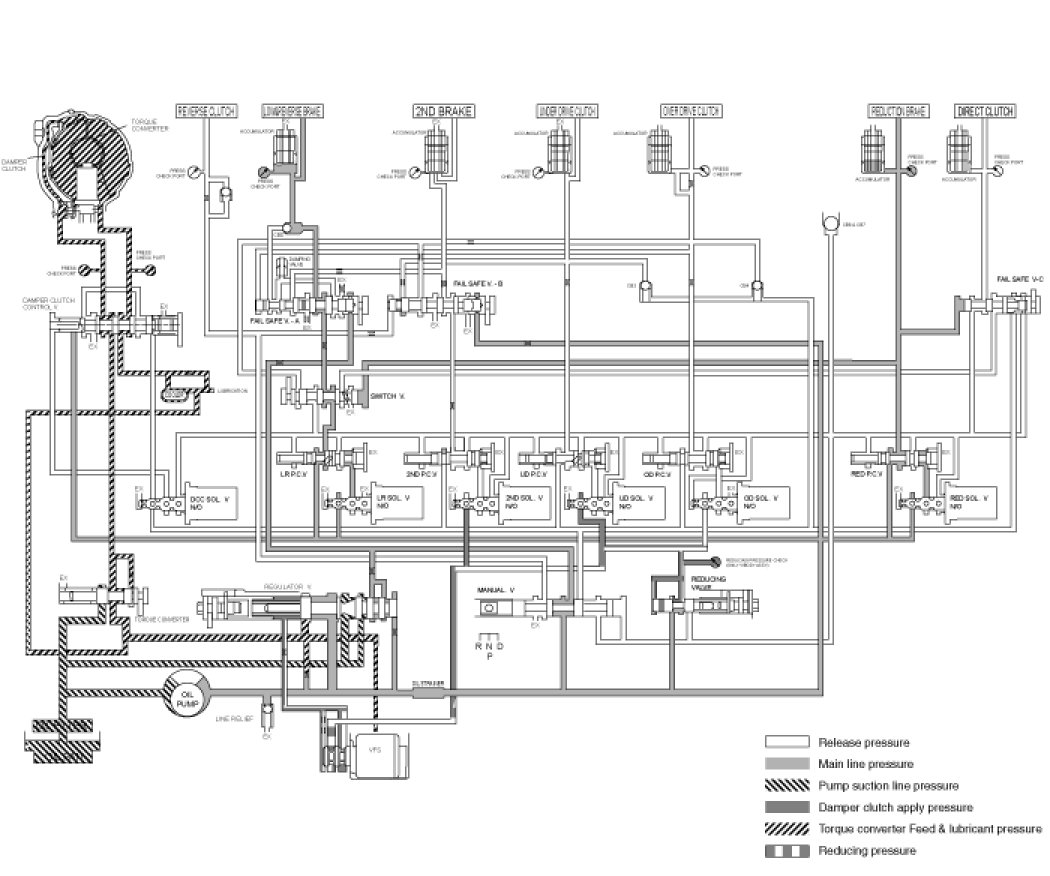

D(2 RANGE)

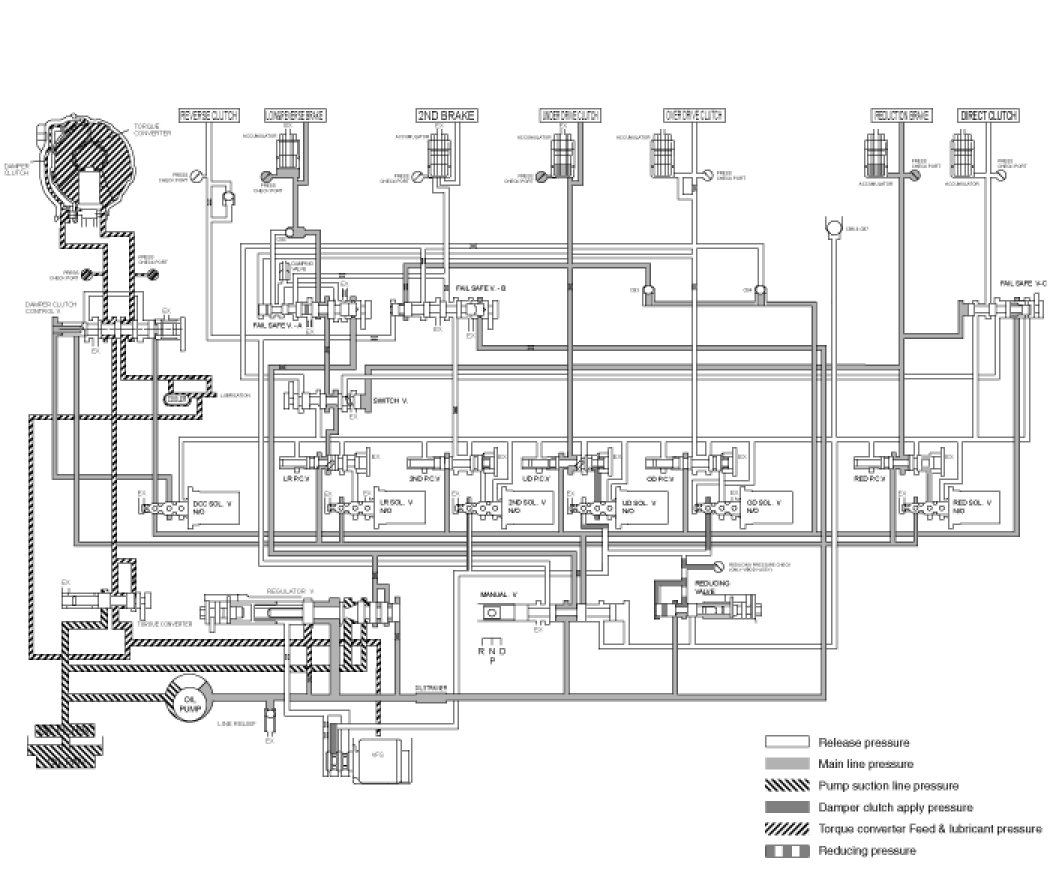

D(3 RANGE)

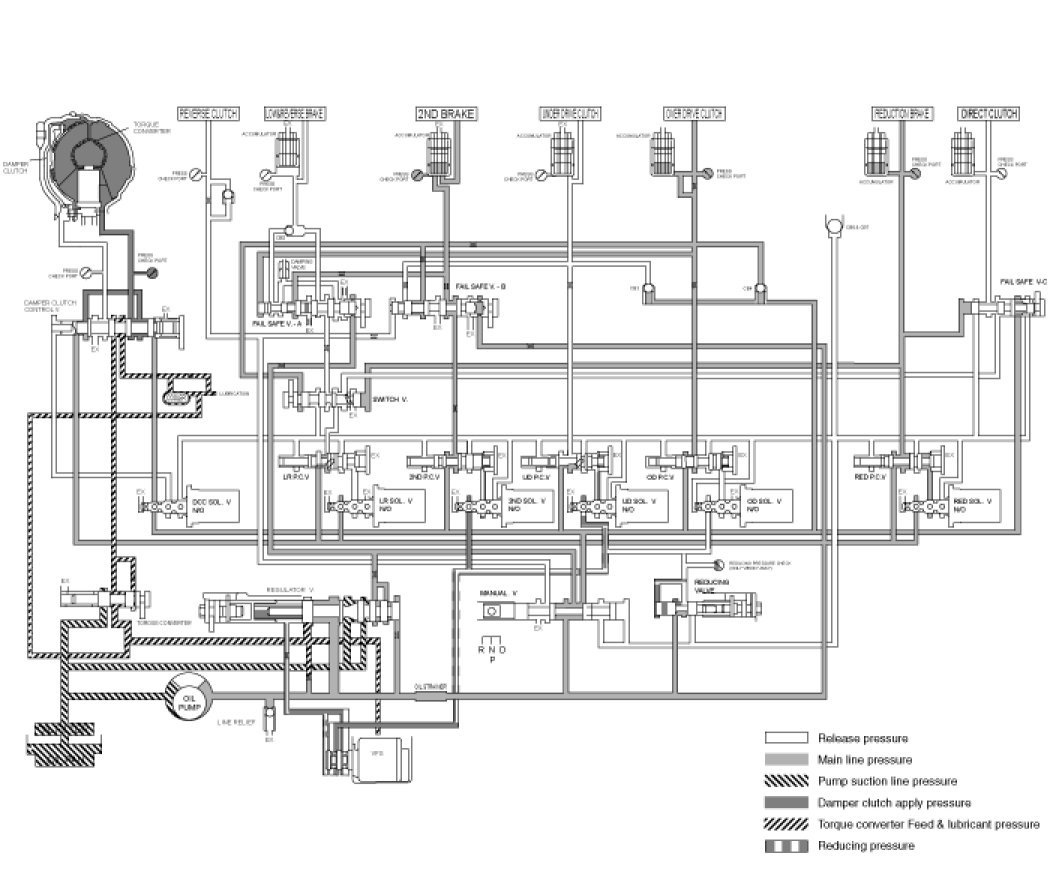

D(4 RANGE)

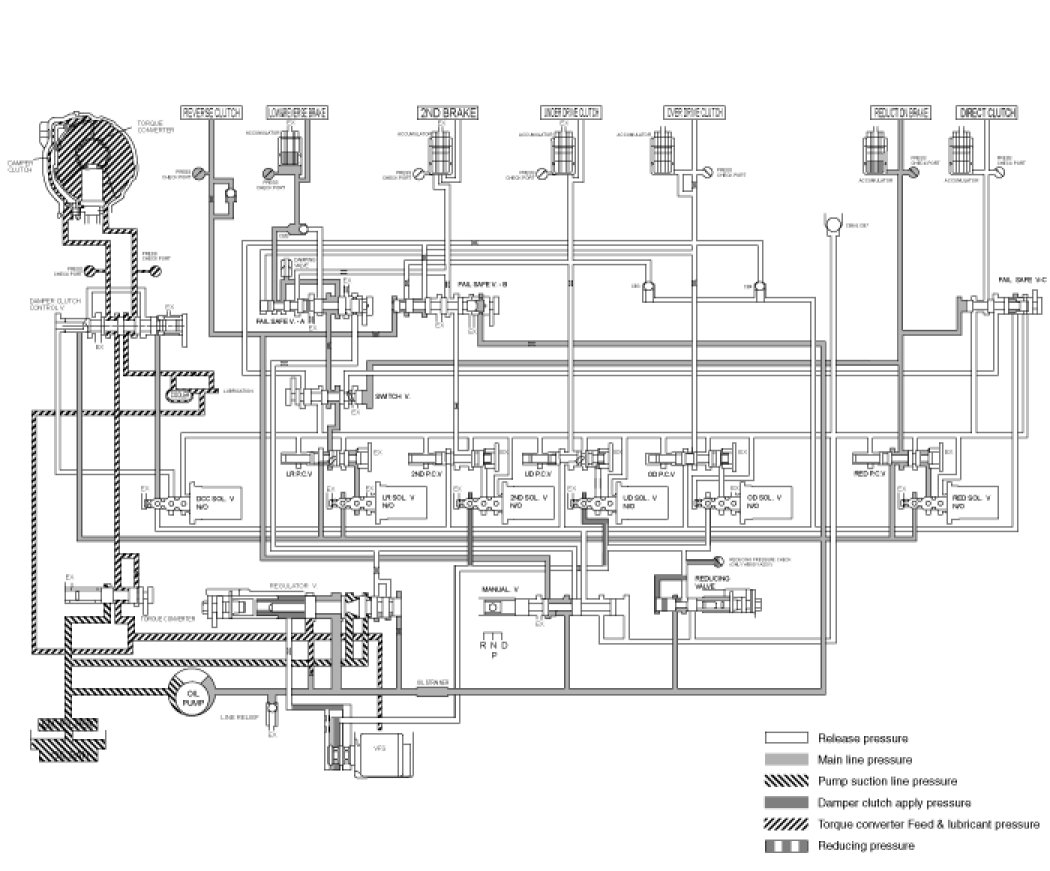

D(5 RANGE)

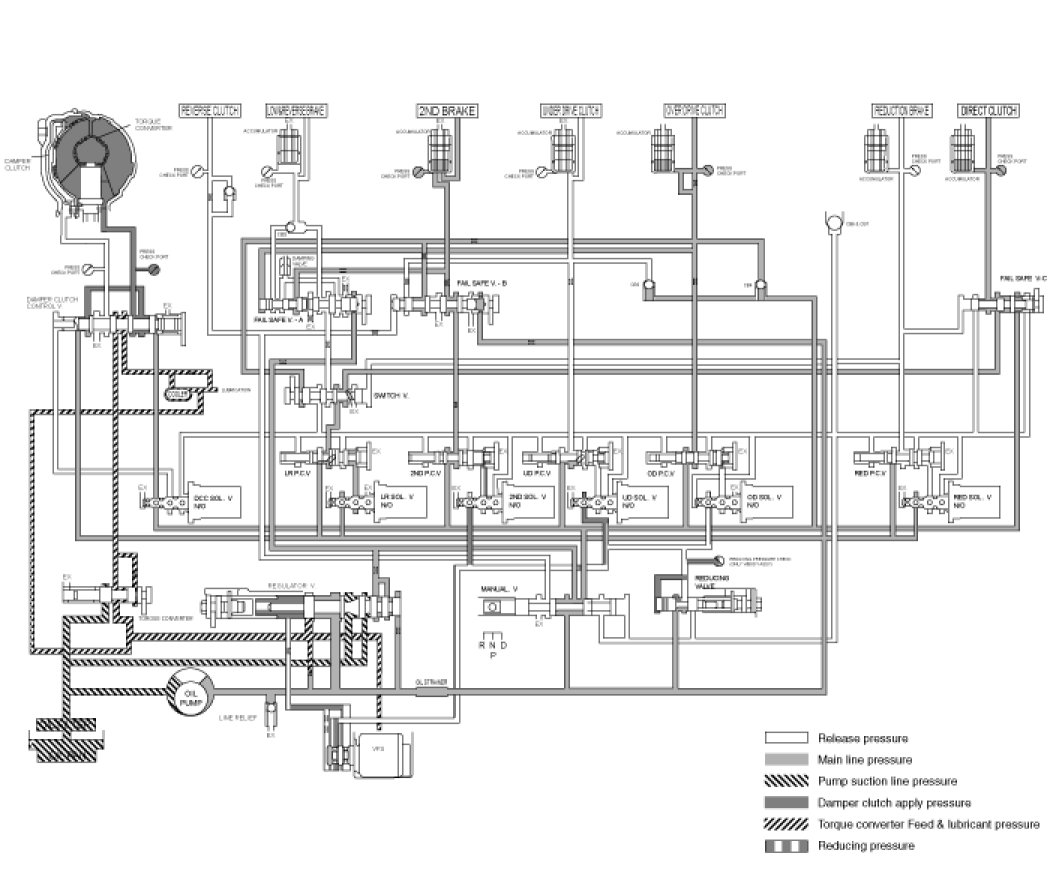

R RANGE
