Cylinder Head





NOTE: Head bolts are reusable

Cylinder Head

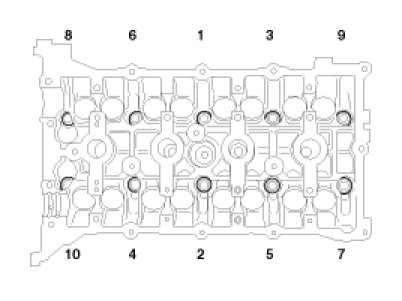

Using triple square hexagon wrench, install and tighten the 10 cylinder head bolts and plate washers, in several passes, in the sequence shown.

Tightening torque 34.3 N.m (3.5 kgf.m, 25.3 lb-ft) + 90° + 90°
