"R" Range

Operating elements: Front Clutch, Low & Reverse Brake

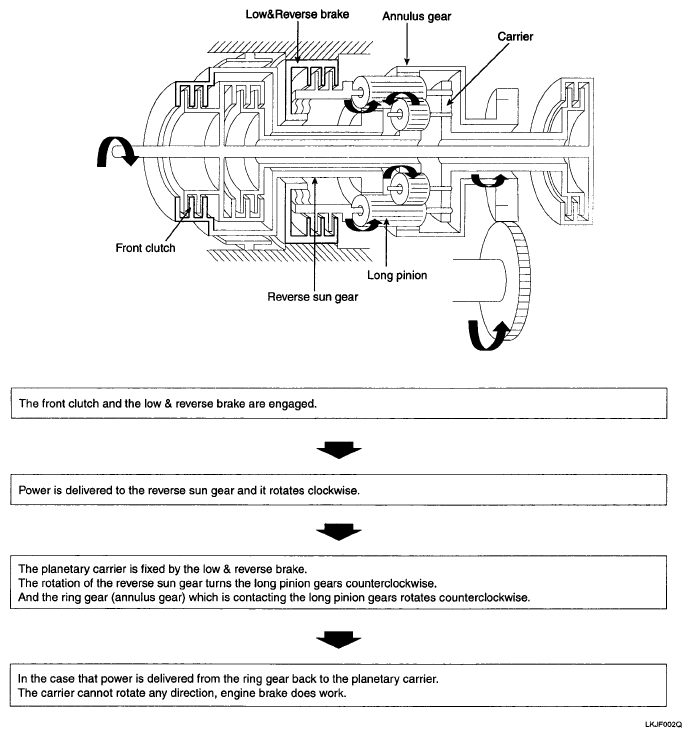

Fig 1: "R" Range - Front Clutch Low & Reverse Brake Operation
G04862503Courtesy of KIA MOTORS AMERICA, INC.
