Power Window Main Switch

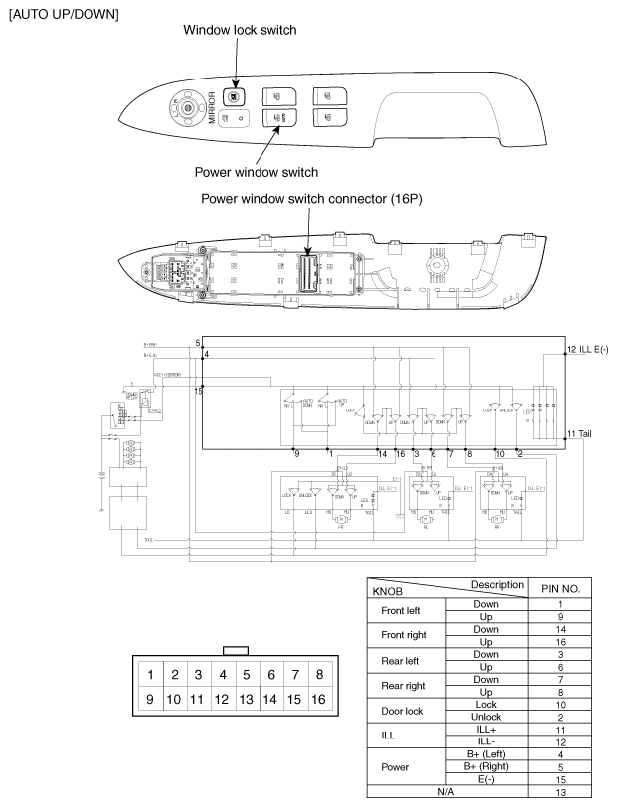

Fig 1: Identifying Power Window Main Switch, Connector, & Terminals

G06387022

Courtesy of KIA MOTORS AMERICA, INC.
