Driver Airbag (DAB) Module And Clock Spring: Components

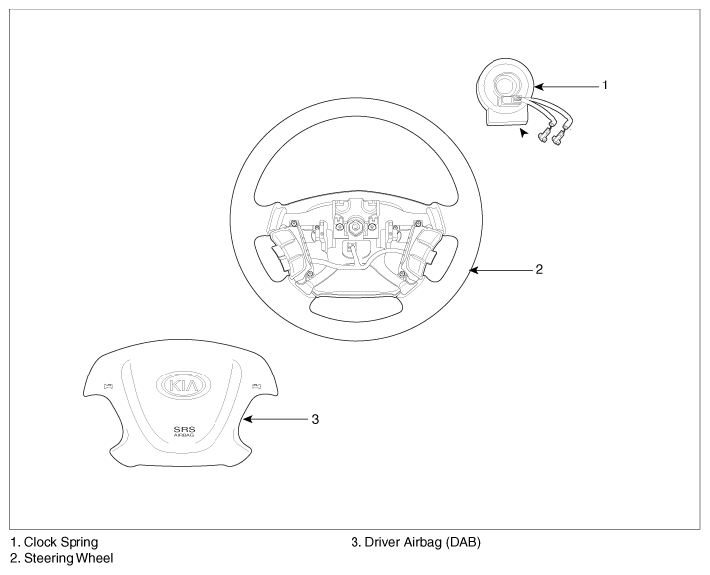

Fig 1: Identifying Clock Spring, Steering Wheel, & Driver Airbag
G06386732Courtesy of KIA MOTORS AMERICA, INC.
