Seat Temperature Element: Service and Repair

REPLACEMENT

SEAT BACK HEATER REPLACEMENT
1. Remove the seat back cover.

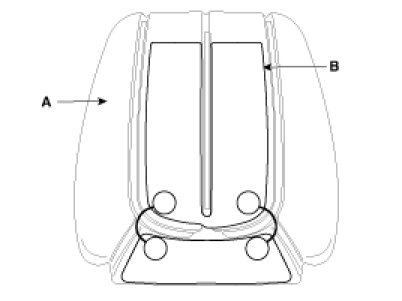

2. Cut the heater (A) attached to the pad (B), as shown in the picture.
3. Take off the paper from the backside of the heater assembly.
4. Attach the heater to the main part of pad.
5. Install the seat back cover.
