Input Speed Sensor





DESCRIPTION

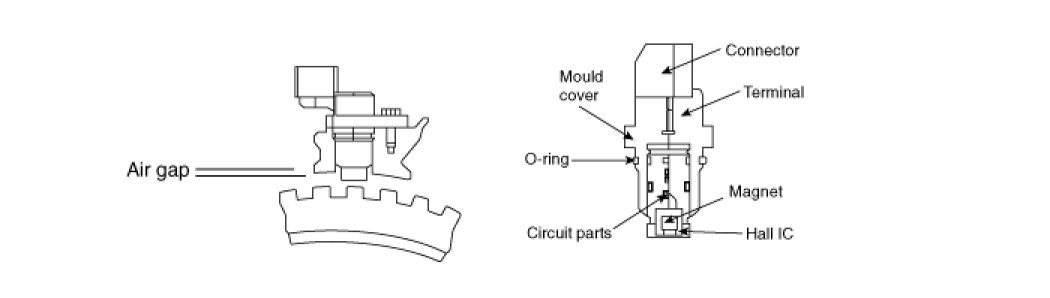

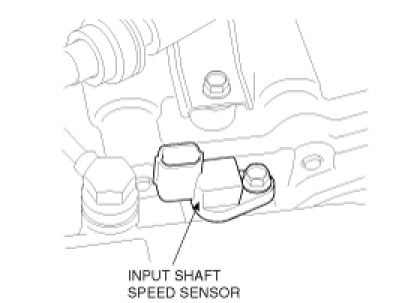

Input shaft speed sensor

- Type: Hall sensor
- Current consumption: 22mA (MAX.)
- Sensor body and sensor connector have been unified as one.




Hall type sensor: specification

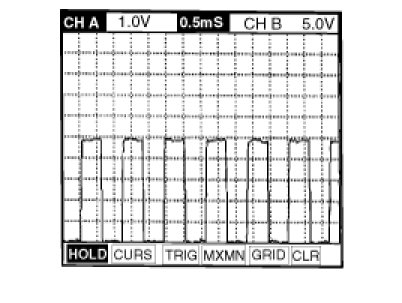

Wave Form With High-scan

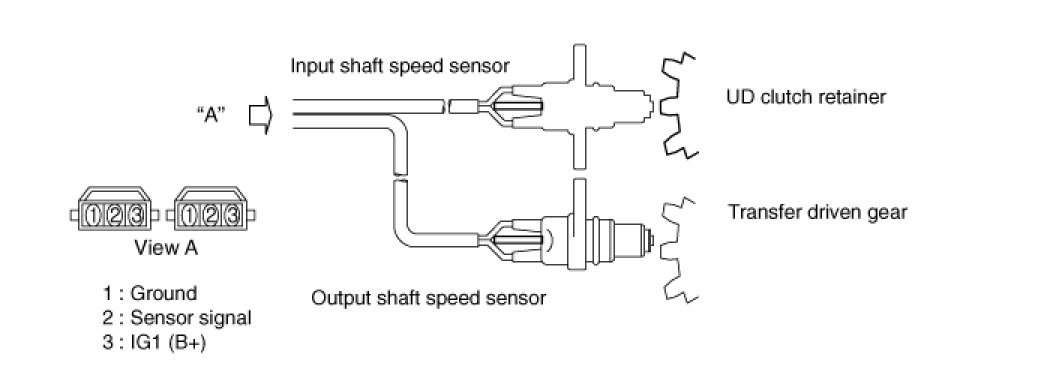

Hall Type Sensor: Structure & Interface
