Chart 1

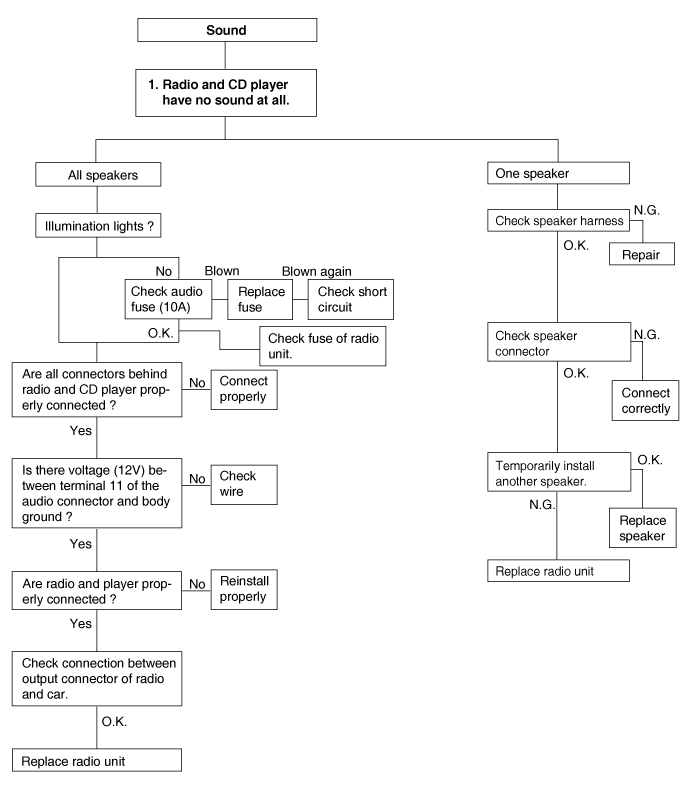

Fig 1: Troubleshooting Flow Chart - Sound
G00485644Courtesy of KIA MOTORS AMERICA, INC.

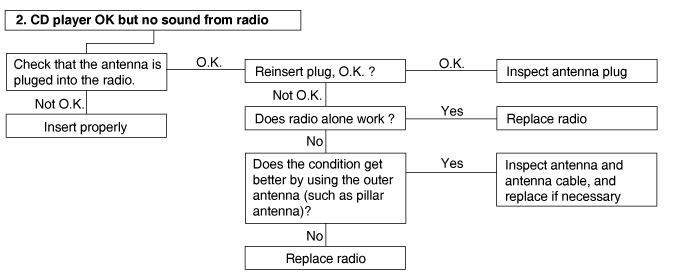

Fig 2: Troubleshooting Flow Chart - CD Player OK But No Sound From Radio
G00485645Courtesy of KIA MOTORS AMERICA, INC.
