Accelerator Position Sensor (APS)
>>
Description
>>
Schematic Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Schematic Diagram

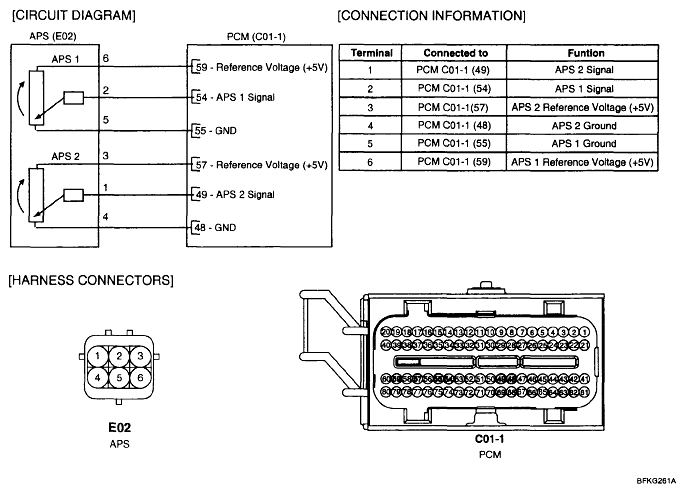

Fig 1: Accelerator Position Sensor (APS) Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
