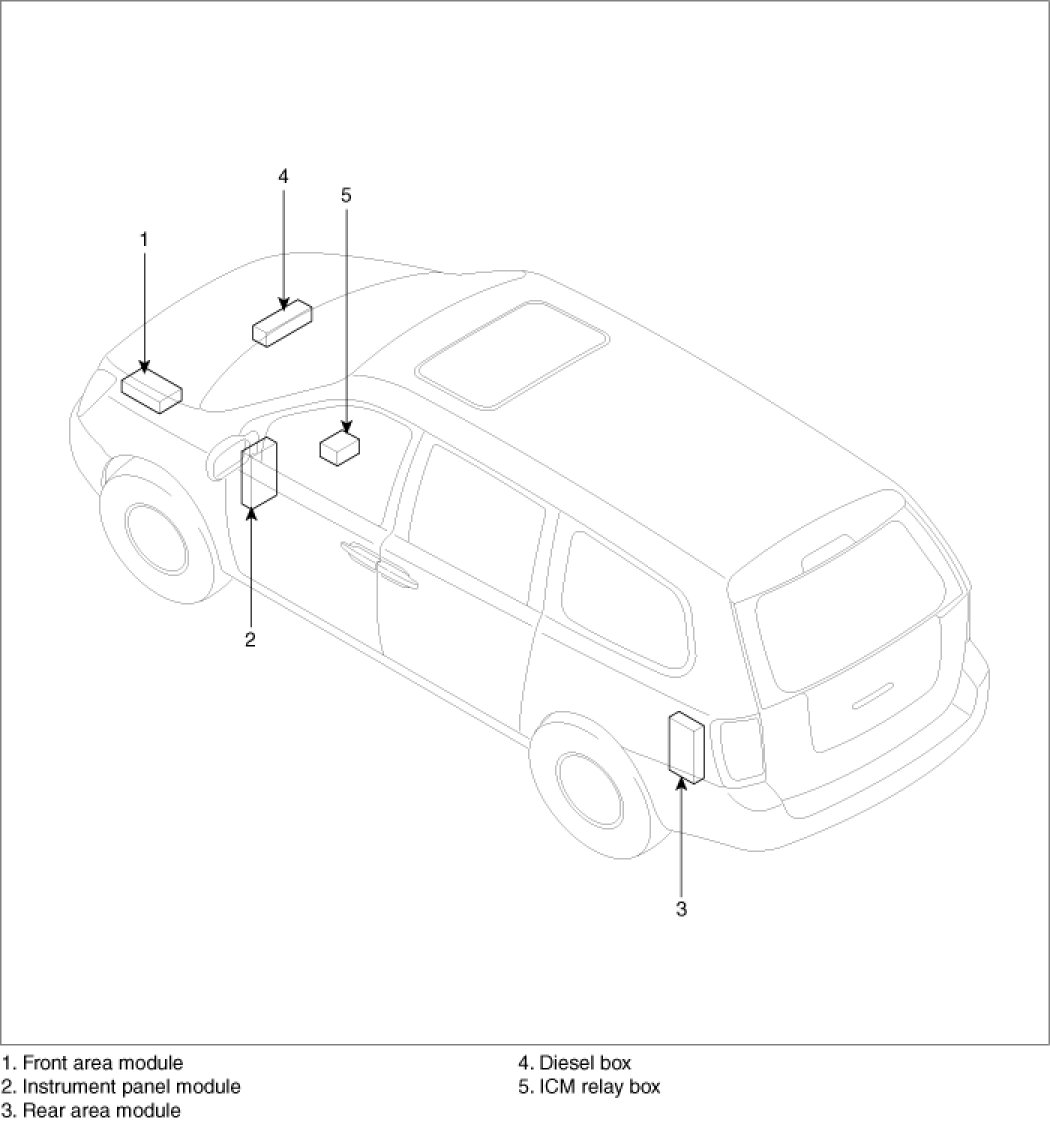

Fuse: Locations
Fuse & Relay Information

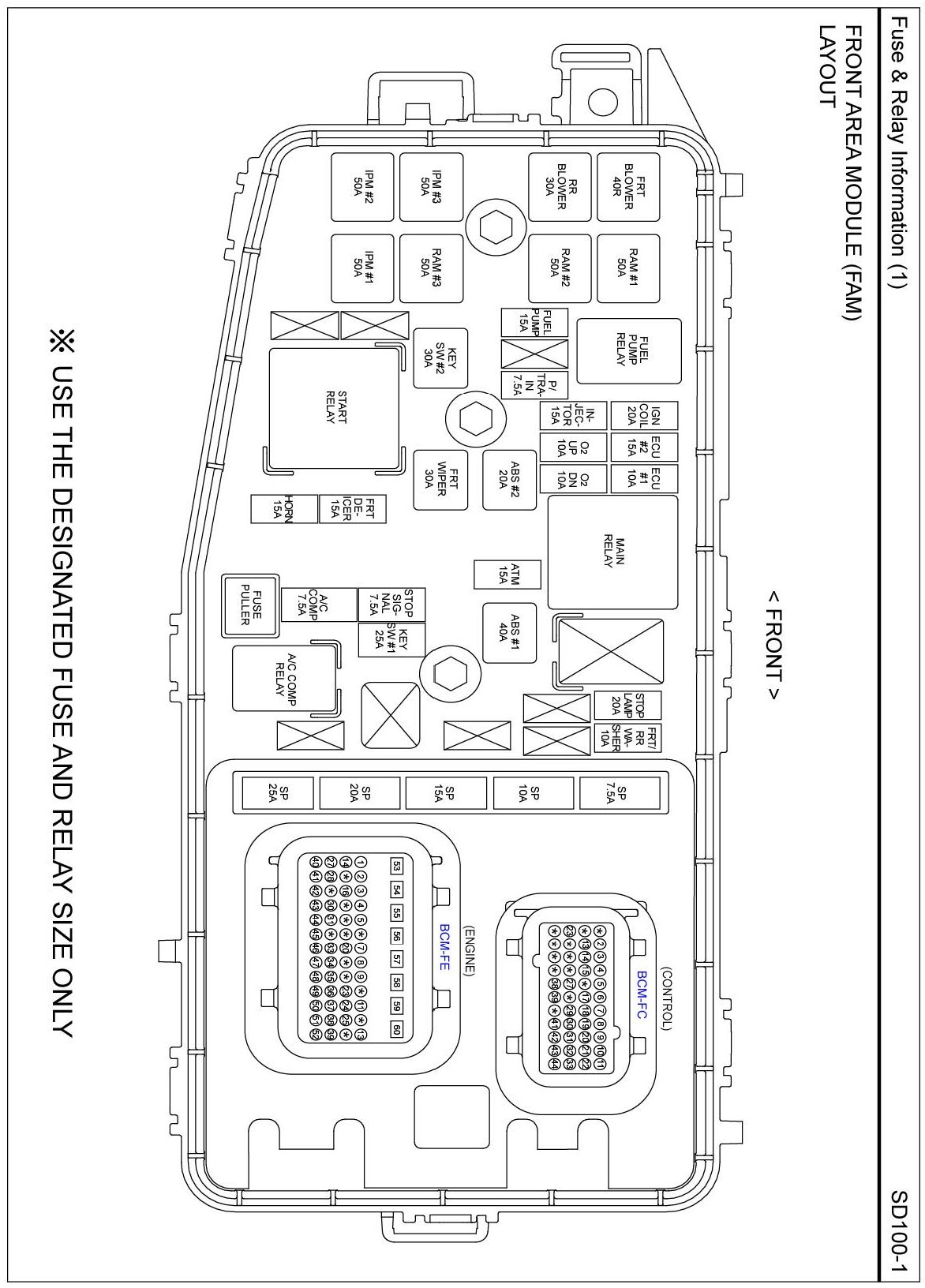

Front Area Module (FAM) Layout View:

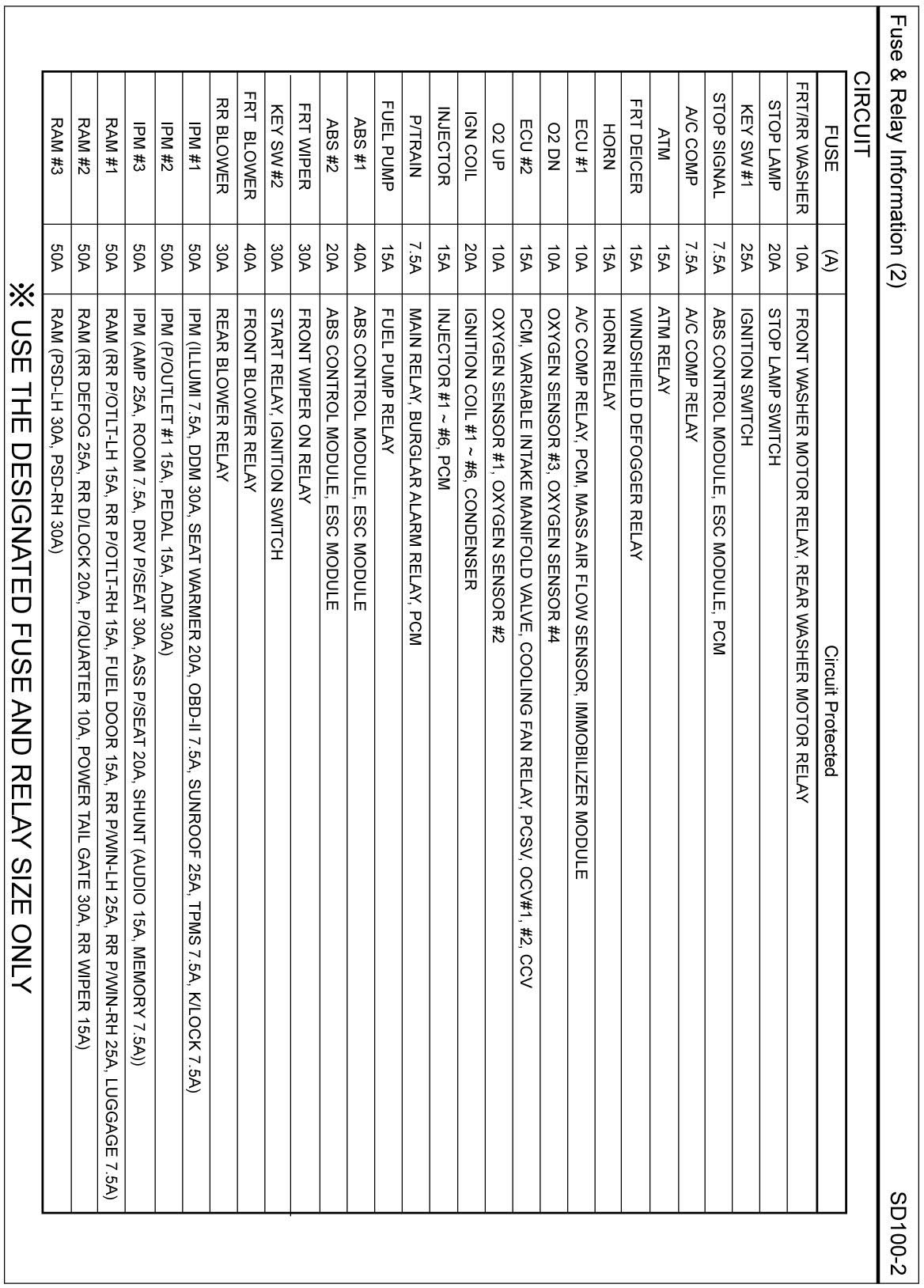

Front Area Module (FAM) Circuit Details:
Front Area Module (FAM) Layout View:

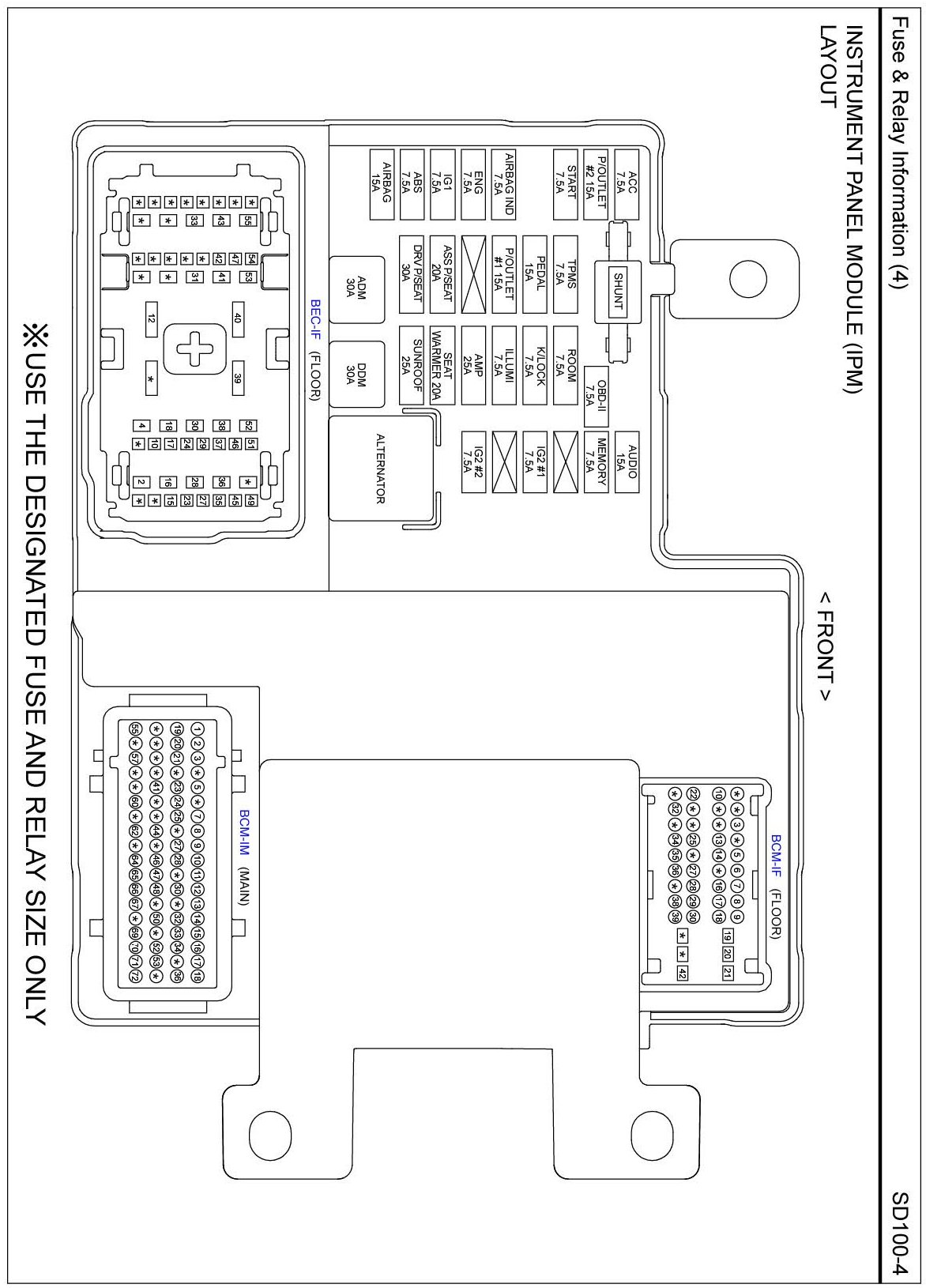

Instrument Panel Module (IPM) Layout View:

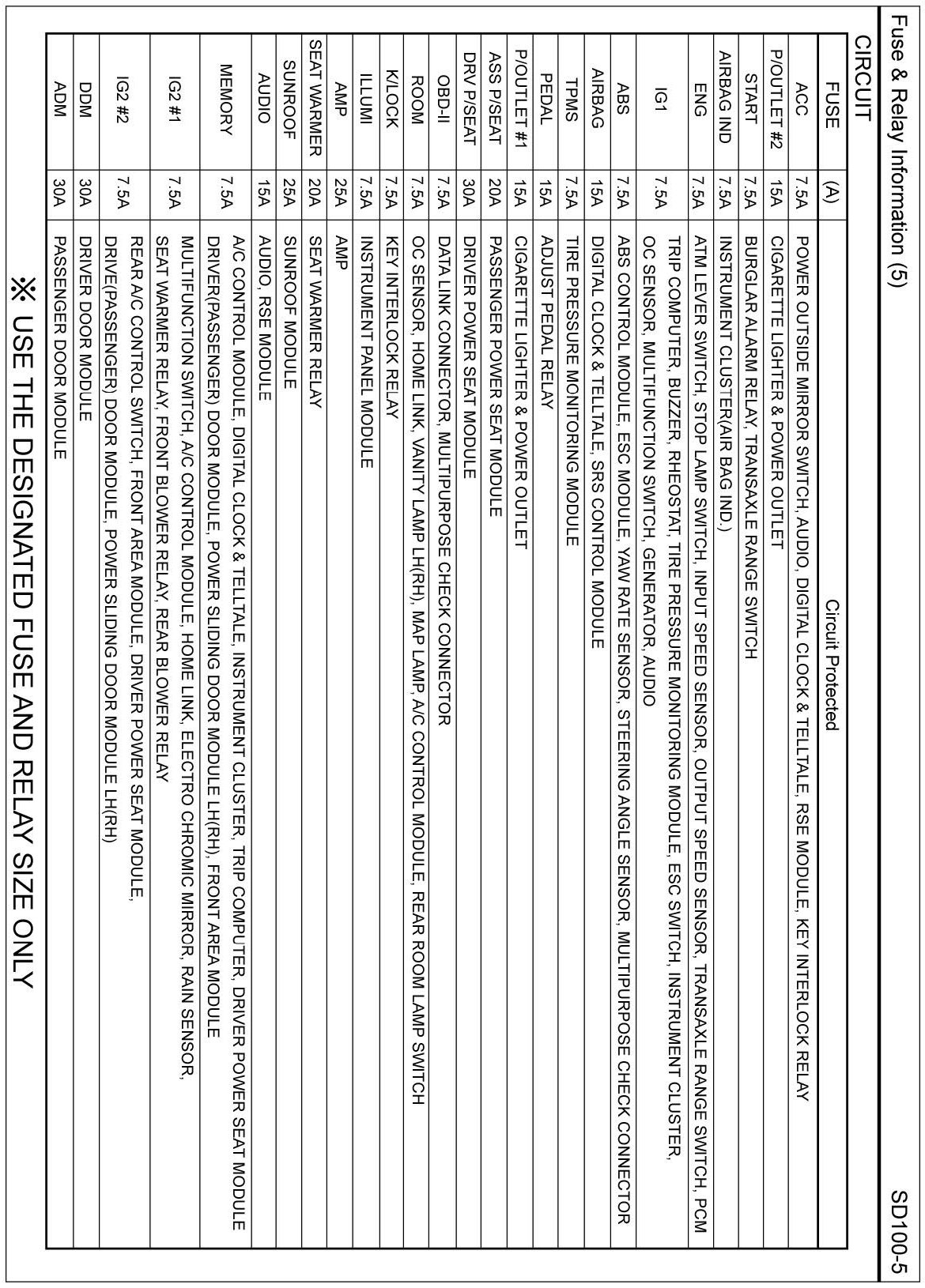

Instrument Panel Module (IPM) Circuit Details:

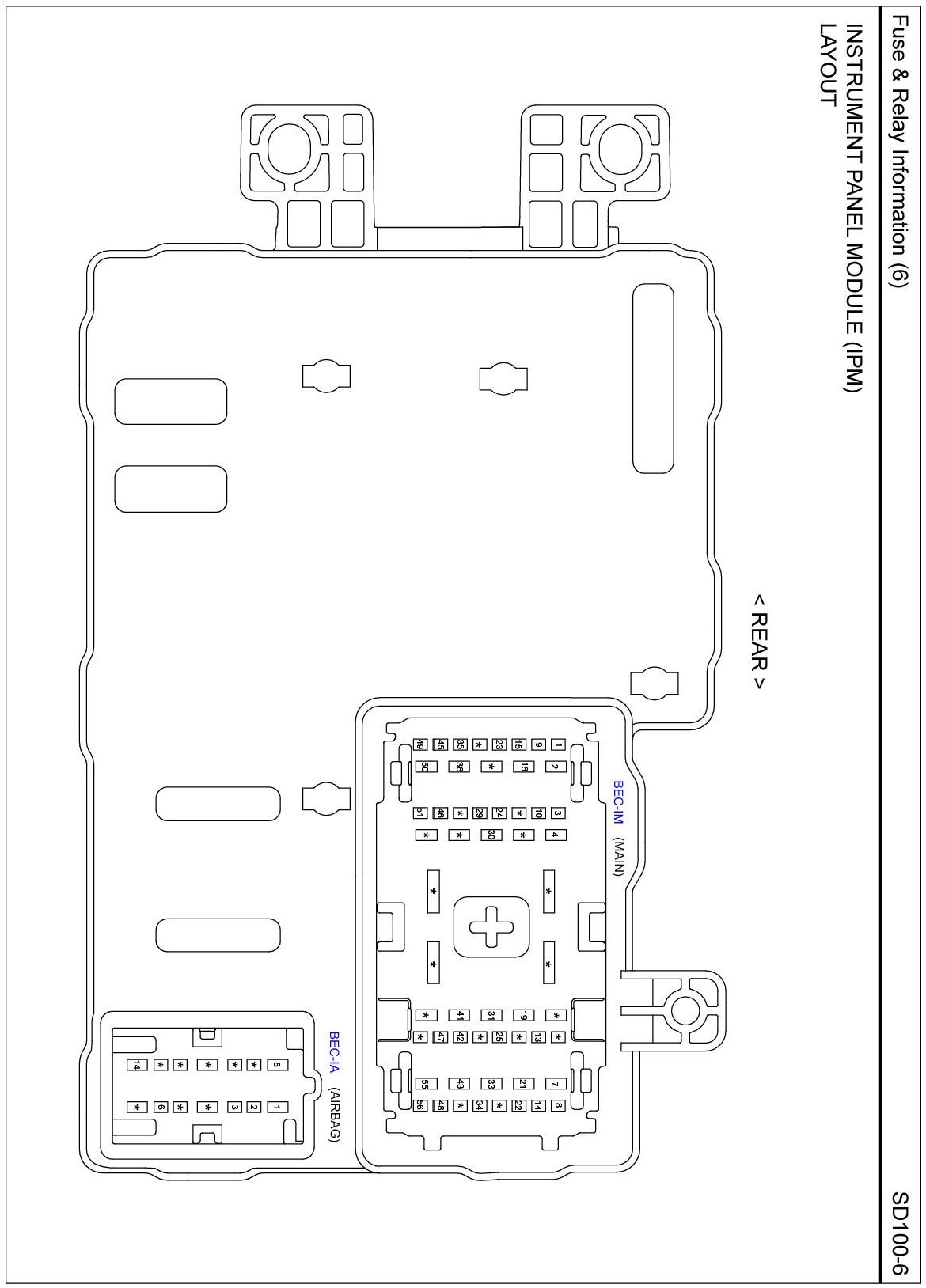

Instrument Panel Module (IPM) Layout View:

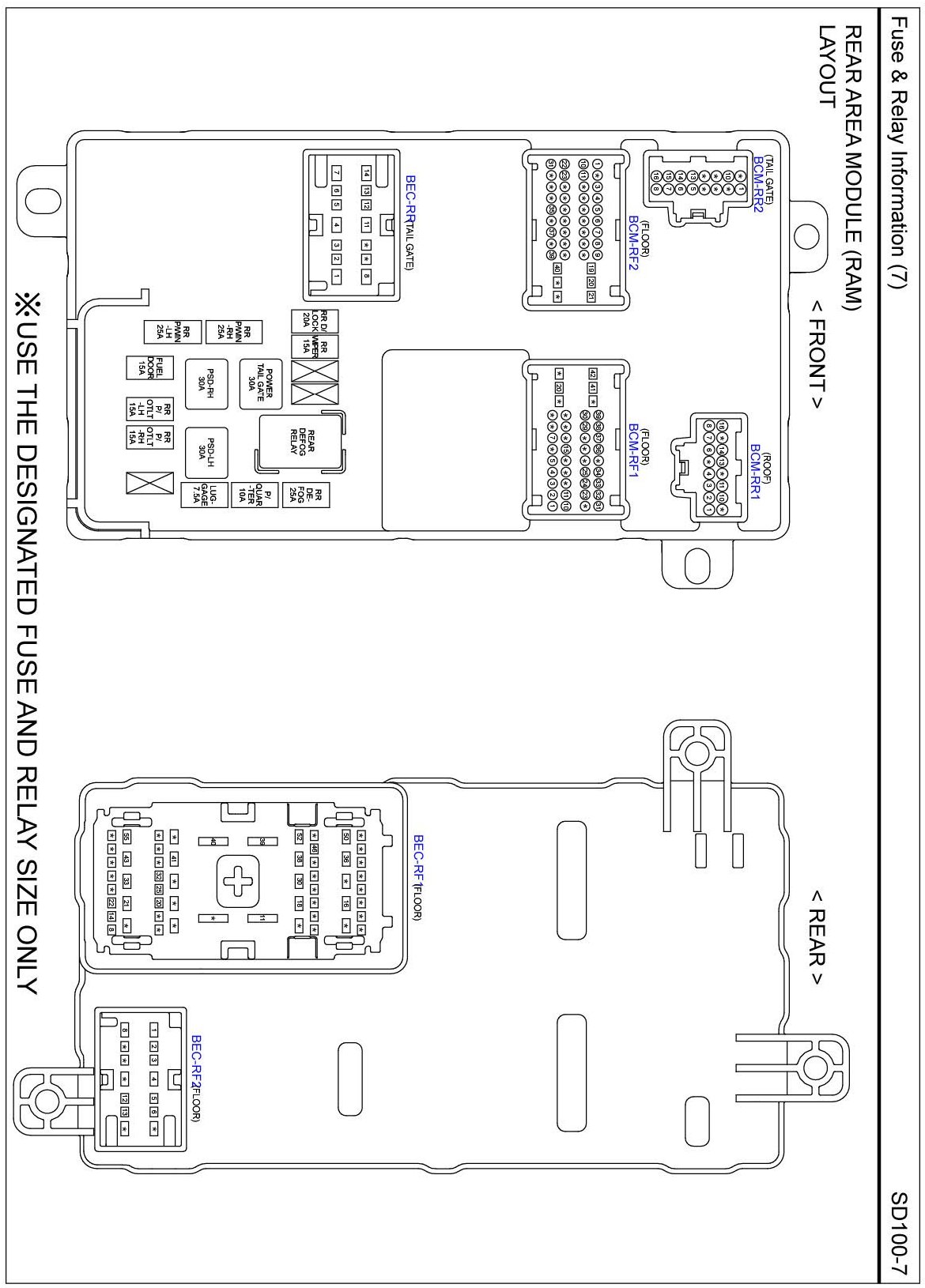

Rear Area Module (RAM) Layout View:

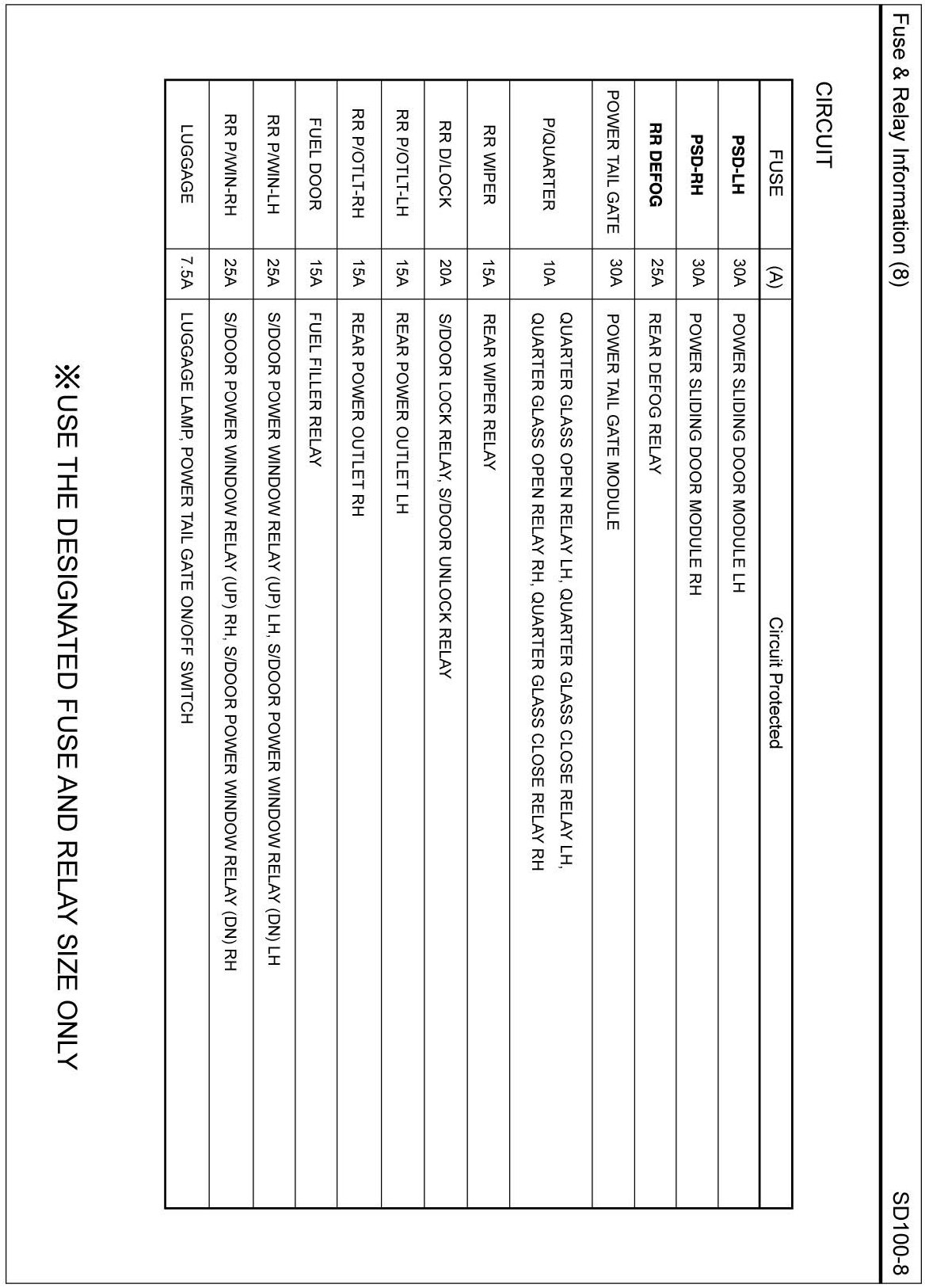

Rear Area Module (RAM) Circuit Details:
