System Specifications

SPECIFICATIONS





O.D=Outer Diameter
I.D=Inner Diameter

NOTE:
ABS : Anti-lock Brake System
ESC : Electronic Stability Control

SERVICE STANDARD

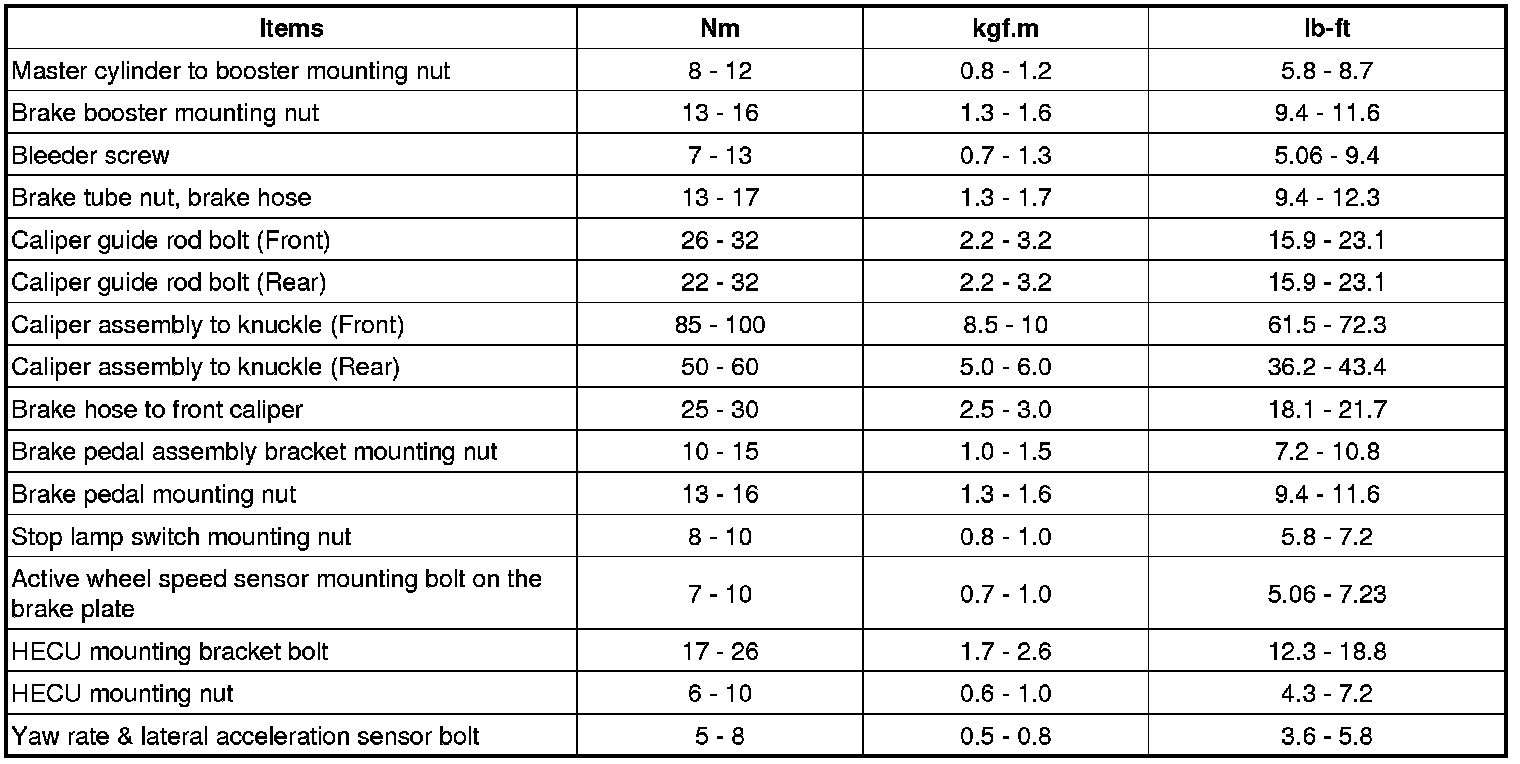

TIGHTENING TORQUE

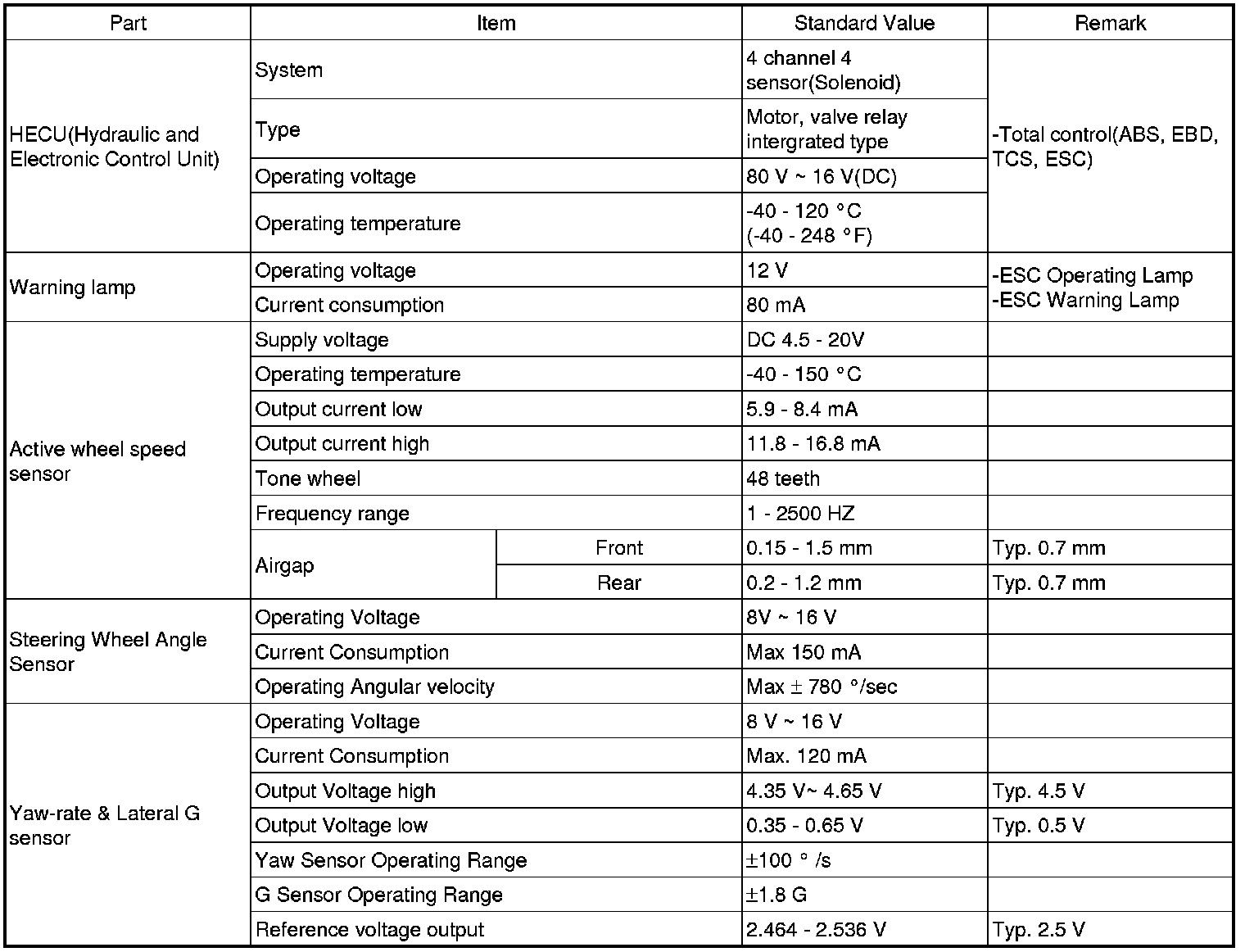

SPECIFICATION (ABS)





SPECIFICATION(ESP)
