Alarm Module: Service and Repair

REMOVAL

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad. .
3. Remove the heater blow unit. .

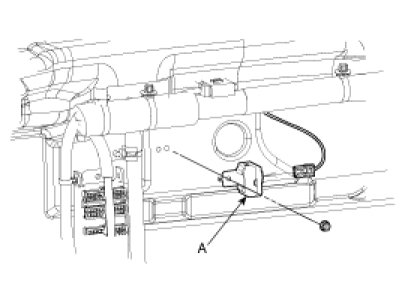

4. Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) after loosening a nut.






INSTALLATION

1. Install the immobilizer control unit after connecting the unit connector.
2. Install the heater blow unit.
3. Install the crash pad.
