Solar Sensor: Testing and Inspection

INSPECTION

1. Ignition "ON"

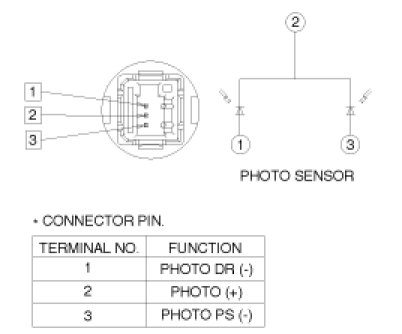

2. Emit intensive light toward photo sensor using a lamp, and check the output voltage change between terminal 2 and 1.
3. Check the output voltage change between terminal 3 and GND.
4. The voltage will rise with higher intensive light and reduce with lower intensive light.
