Relay Box: Testing and Inspection

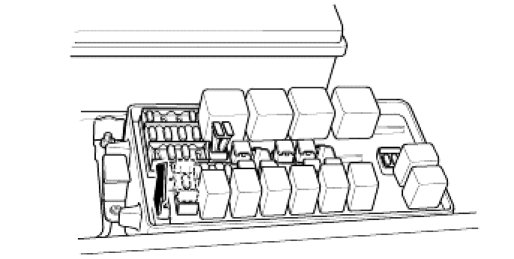

INSPECTION

1. Check for a burnt fuse with an ohmmeter.
2. If a fuse burns out, there is a short or some other problem in the circuit. Carefully determine the cause and correct it before replacing the fuse.

CAUTION:
The fuse will burn out within 15 seconds if a higher than specified current flows through the circuit.

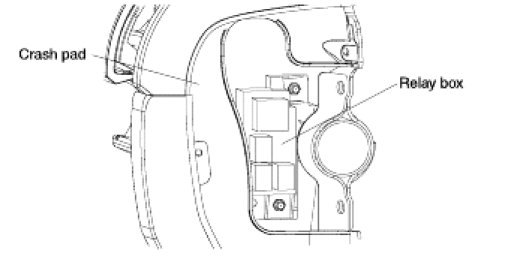

INSPECTION

1. Check for a burnt relay with an ohmmeter.
2. If a relay burns out, there is a short or some other problem in the circuit. Carefully determine the cause and correct it before replacing the relay.
