Kia
>>
2009
>>
Sorento Base, A5SR2
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Power Windows
>>
Power Window Switch
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

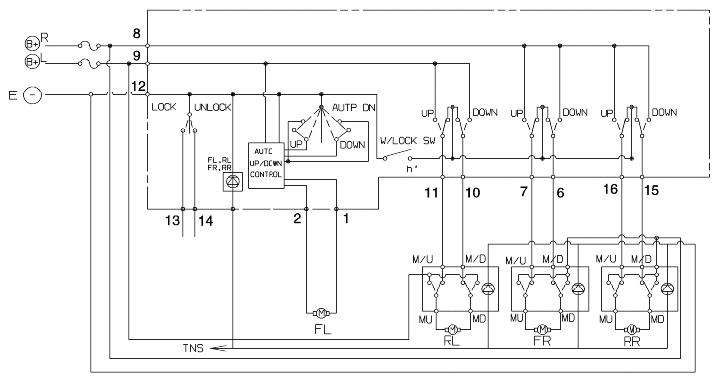

Fig 1: Power Window Switch Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
