Components and Components Location: Components

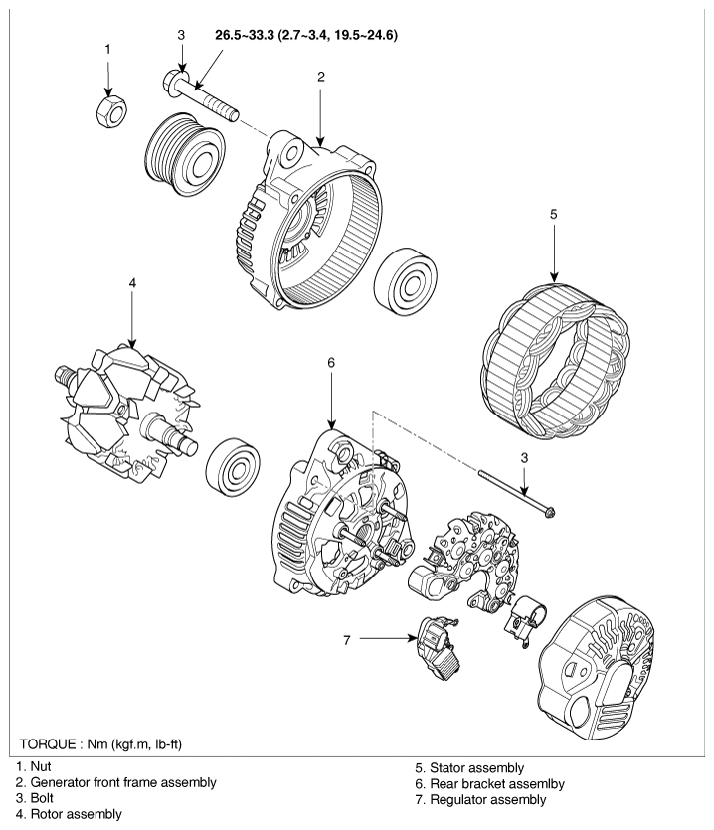

Fig 1: Alternator Replacement Components With Torque Specifications
G06407914Courtesy of KIA MOTORS AMERICA, INC.
