Component Inspection

Check the Signal waveform of HO2S
1. IG "OFF" and connect HO2S connector.
2. Engine start.
3. After warming-up, monitor signal waveform of HO2S with scan tool.

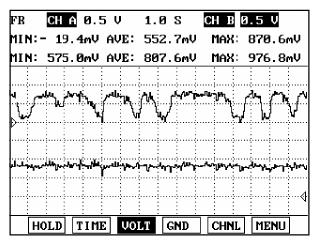

  Fig 1: Identifying Signal Waveform
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the sensor switching properly?
  YES
  - Go to " 2 Check HO2S" as indicated below.
  NO
  - Substitute with a known-good HO2S and check for proper operation. If the problem is corrected, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check HO2S
1. IG "OFF" and disconnect HO2S connector.
2. Check that the HO2S is securely installed.
3. Check the HO2S for contamination or damage
4. Is the sensor normal?
  YES
  - Substitute with a known-good ECM and check for proper operation. If the problem is corrected, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Substitute with a known-good HO2S and check for proper operation. If the problem is corrected, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NOTE: There is a memory reset function on scan tool that can erase optional parts automatically detected and memorized by ECM. Before or after testing ECM on the vehicle, use this function before reusing the ECM.
