Repair Procedures

REPLACEMENT

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

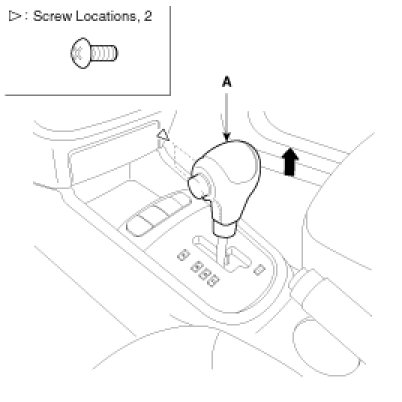

1. After loosening the mounting screw, then remove the knob (A).




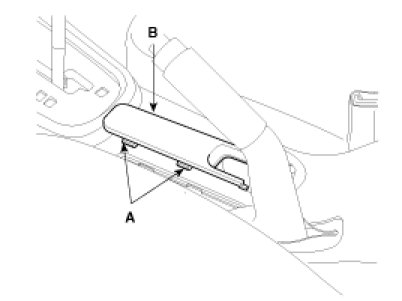

2. Gently detach the hook, remove the parking brake cover (A).

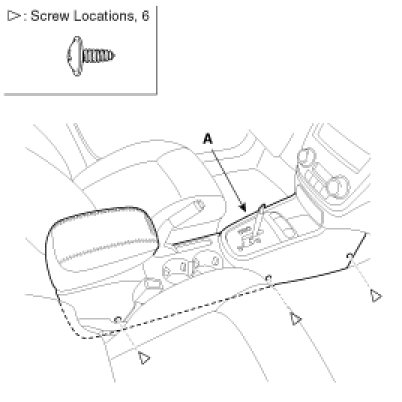

3. After loosening the console mounting screws, remove the floor console assembly (A).

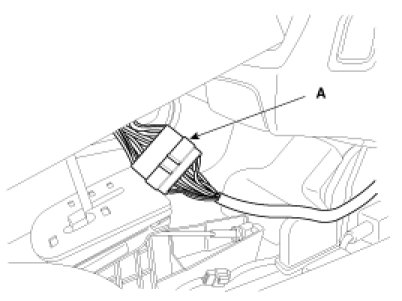

4. Disconnect the console main harness connector (A).




5. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly.
- Replace any damage clips.
