Scan Tool Testing and Procedures











HI-SCAN (PRO) CHECK
1. Turn the ignition switch OFF.

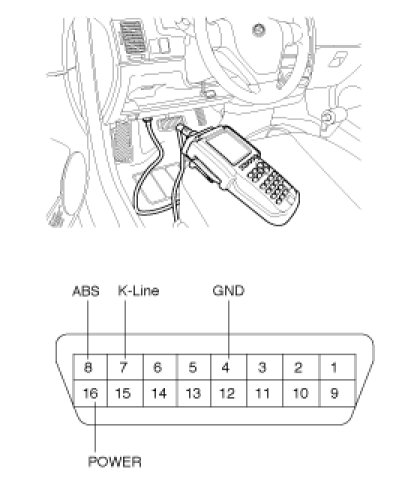

2. Connect the Hi-scan (pro) to the 16P data link connector located behind the driver's side kick panel.




3. Turn the ignition switch ON.
4. Check for diagnostic trouble codes using the Hi-scan (pro).
5. After completion of the repair or correction of the problem, erase the stored fault codes using the clear key on the Hi-scan (pro).
6. Disconnect the Hi-scan (pro) from the 16P data link connector.
