Restraint (Airbag Control) - Supplemental Restraint System Control Module (SRSCM)

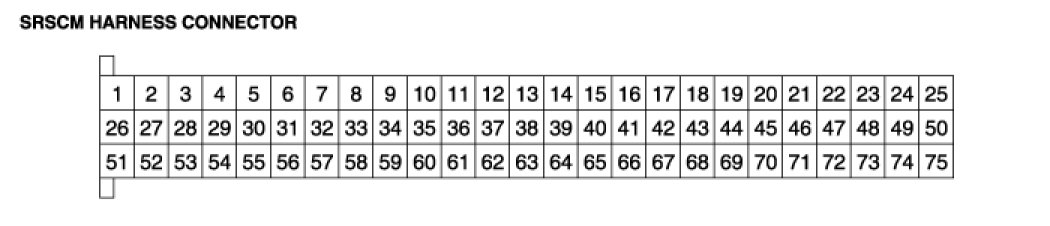

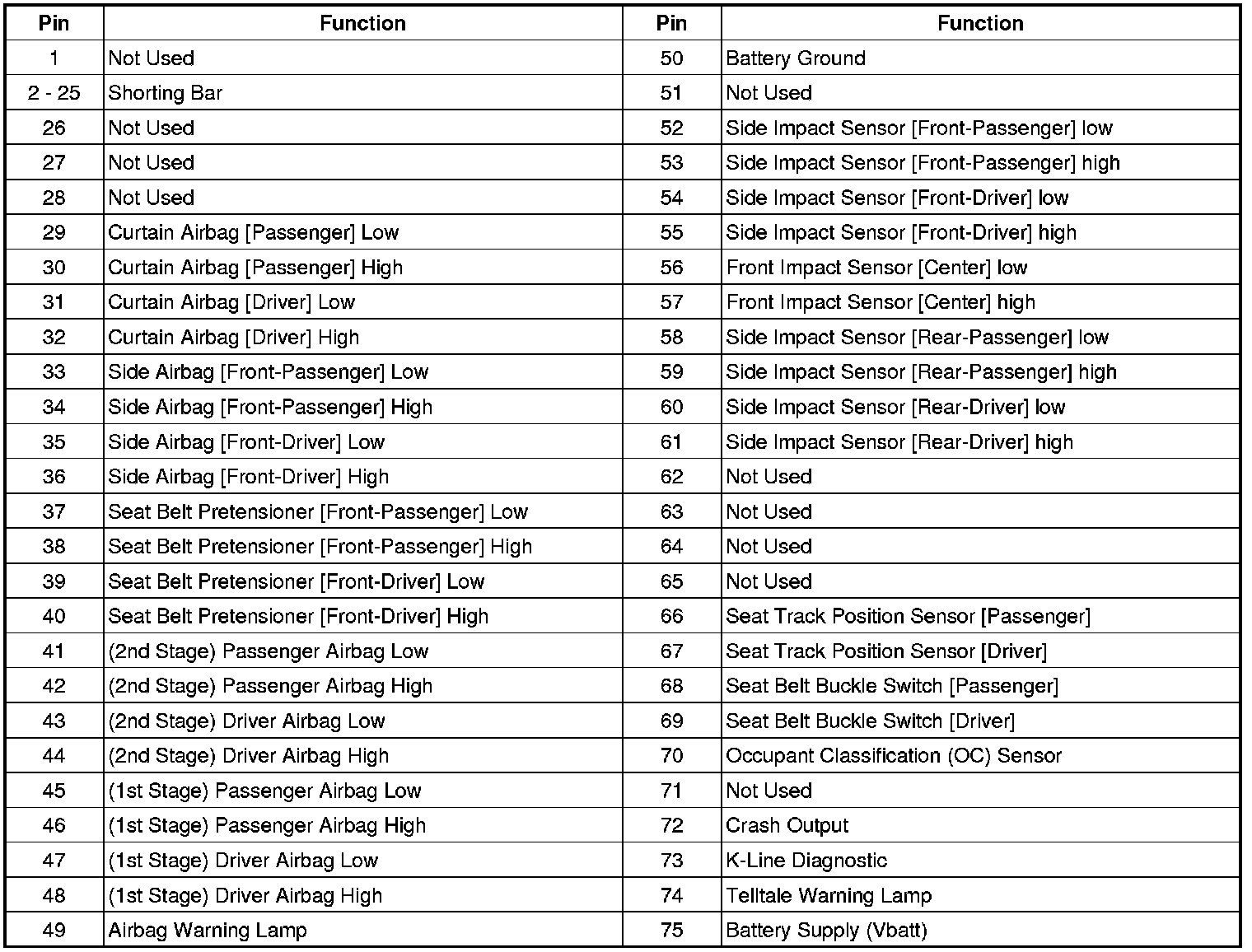

SRSCM CONNECTOR TERMINAL
