Evaporative Emissions System: Diagrams








COMPONENTS

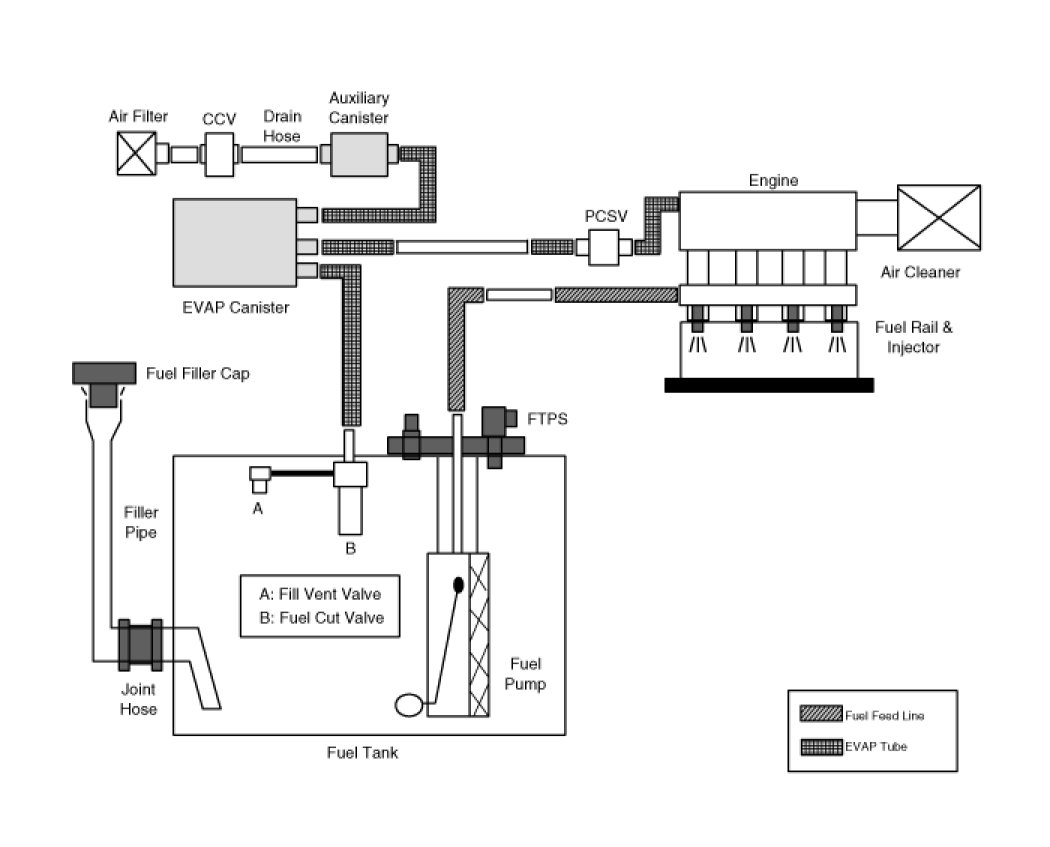

Evaporative Emission Control System - Components:





DESCRIPTION

COMPONENTS

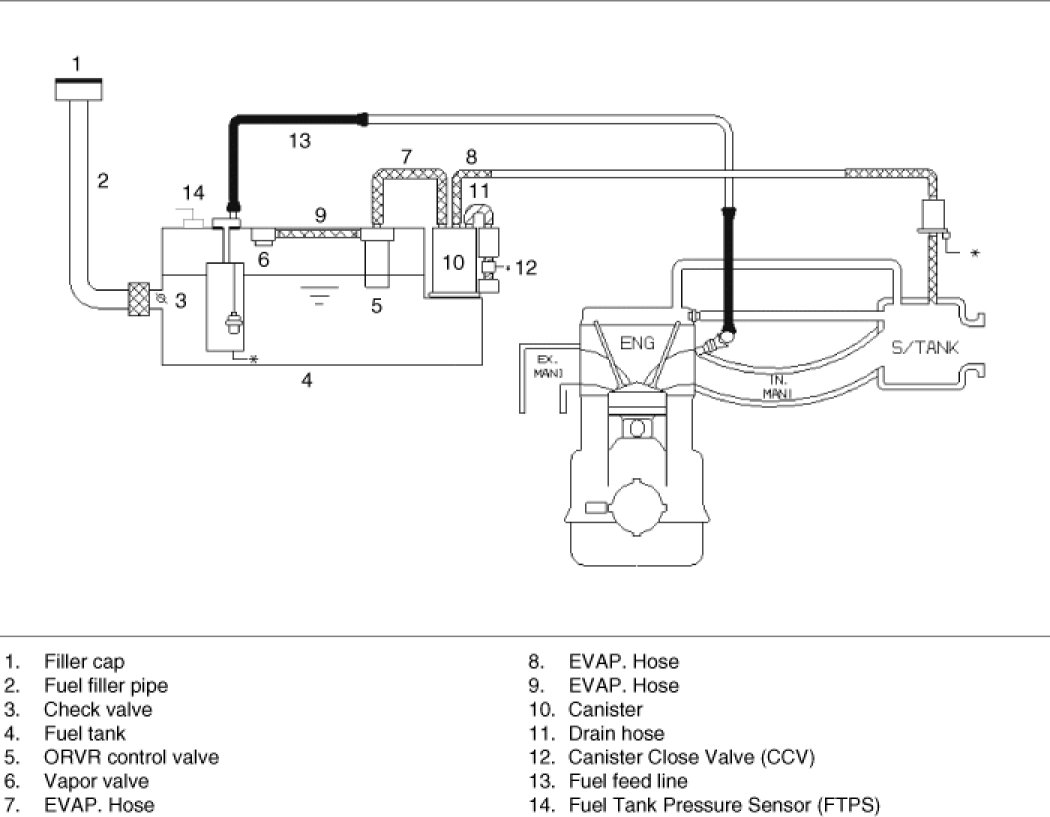

Evaporative Emission Control System Diagram - Description:
