Abs (Anti-Lock Brake System): Components

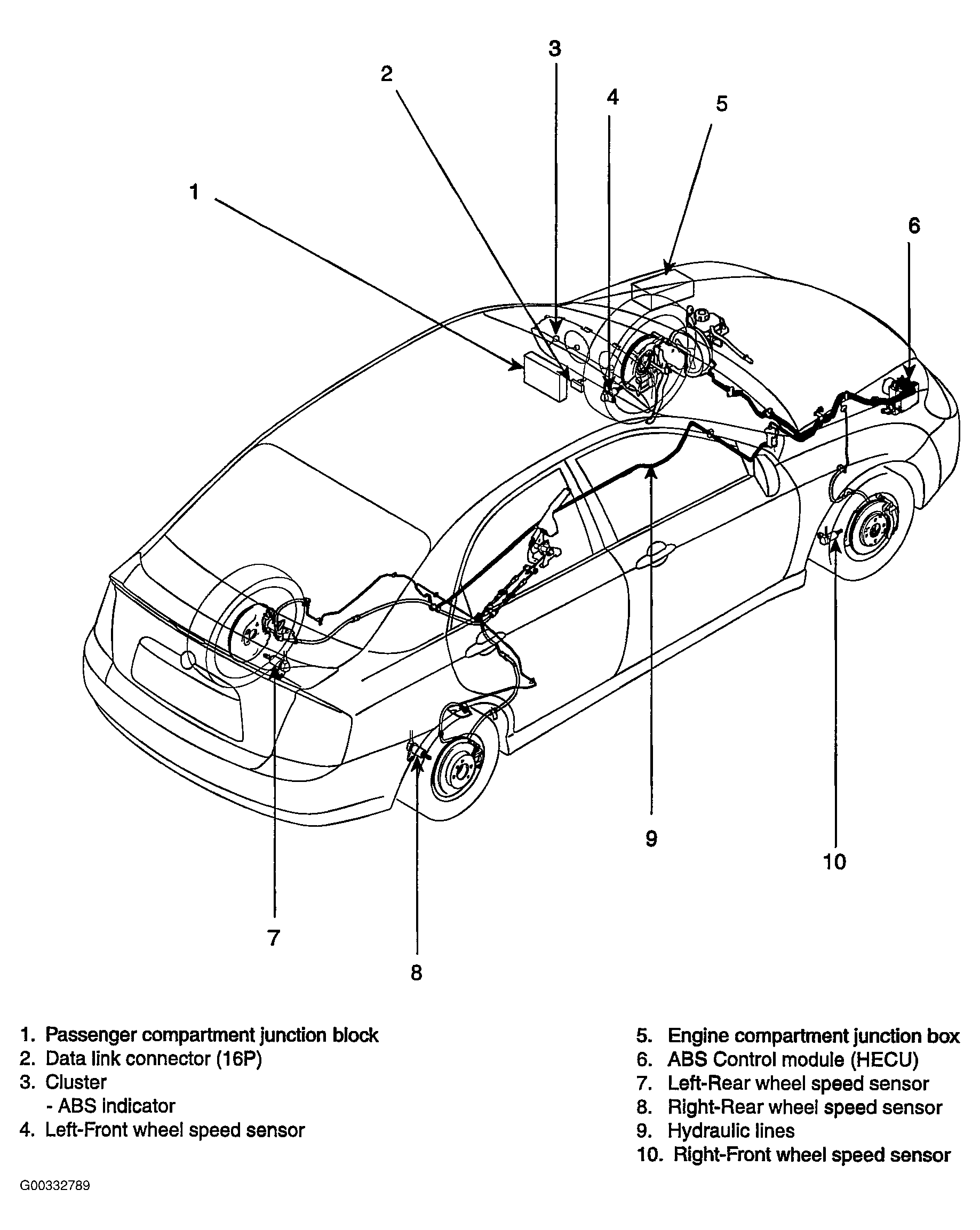

Fig 1: Identifying ABS Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
