Automatic Transaxle: Components

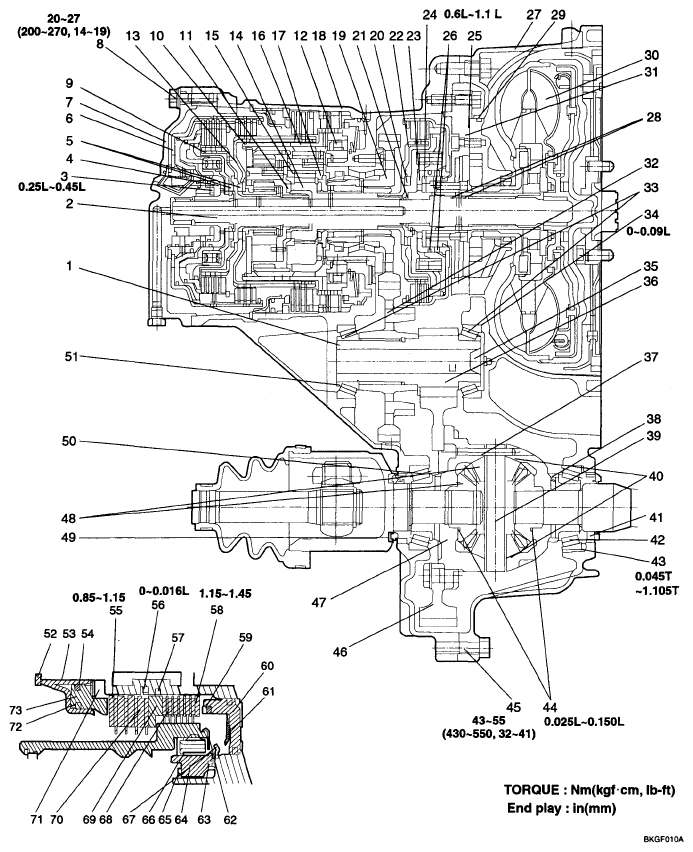

Fig 1: Cutaway View Of Automatic Transaxle Components With Torque Specifications

Courtesy of KIA MOTORS AMERICA, INC.

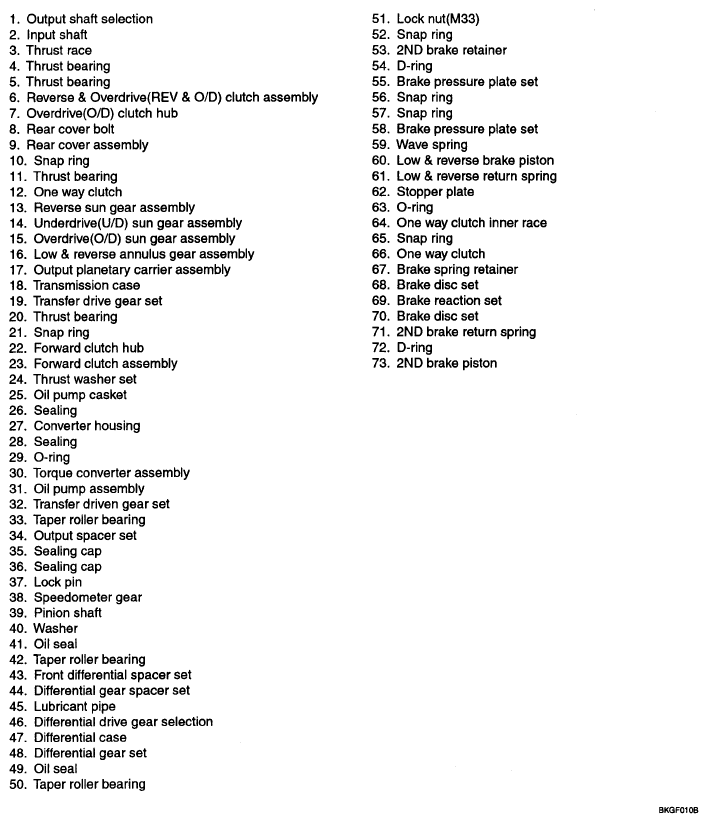

Fig 2: Identifying Automatic Transaxle Components

Courtesy of KIA MOTORS AMERICA, INC.

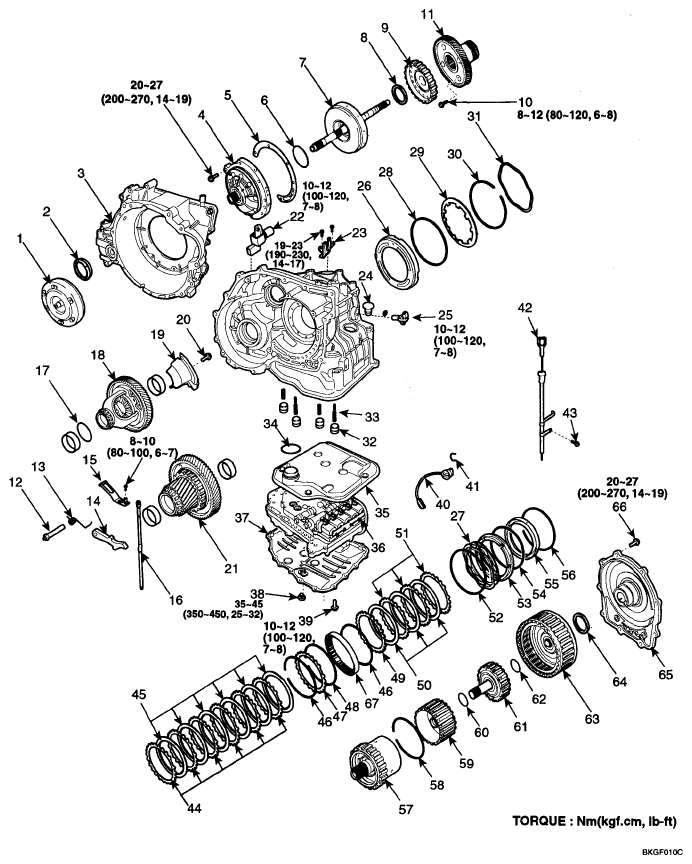

Fig 3: Exploded View Of Automatic Transaxle Components With Torque Specifications

Courtesy of KIA MOTORS AMERICA, INC.

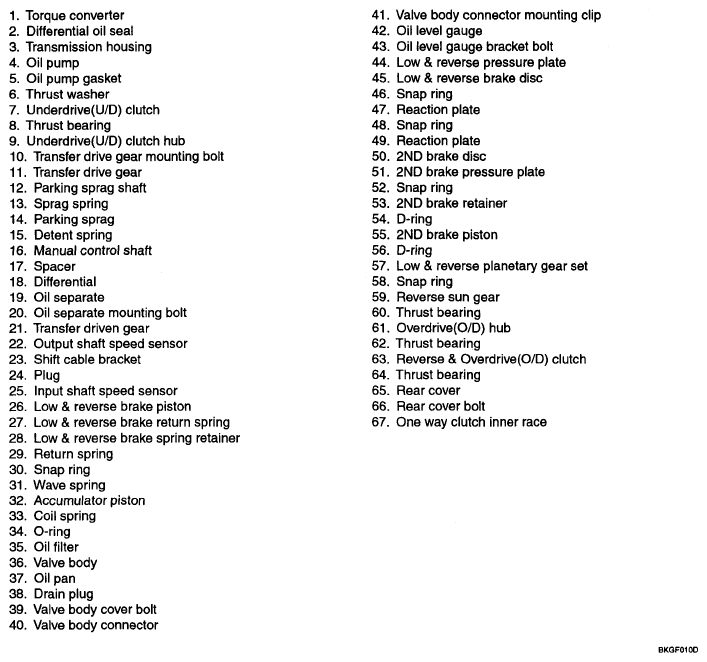

Fig 4: Identifying Automatic Transaxle Components

Courtesy of KIA MOTORS AMERICA, INC.
