Transaxle Structure

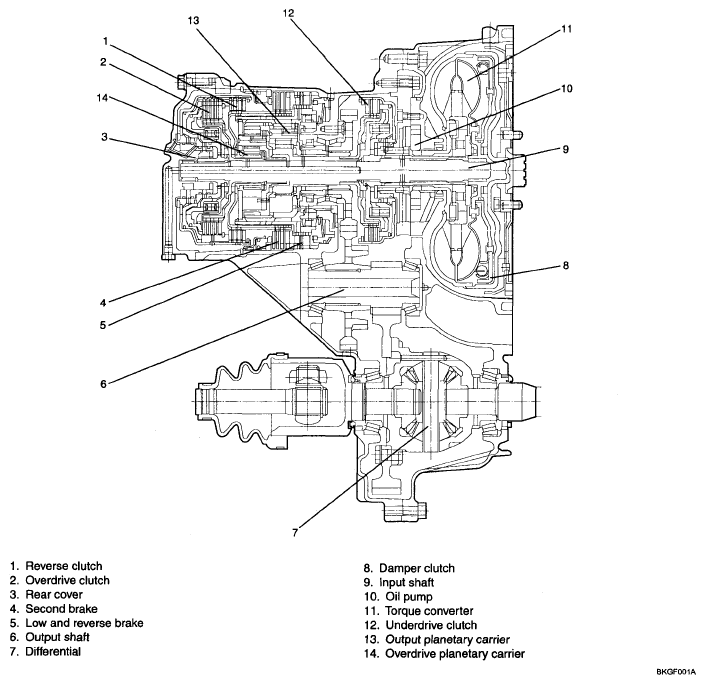

Fig 1: Automatic Transaxle Structure
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
