Steering Column/Shaft: Components

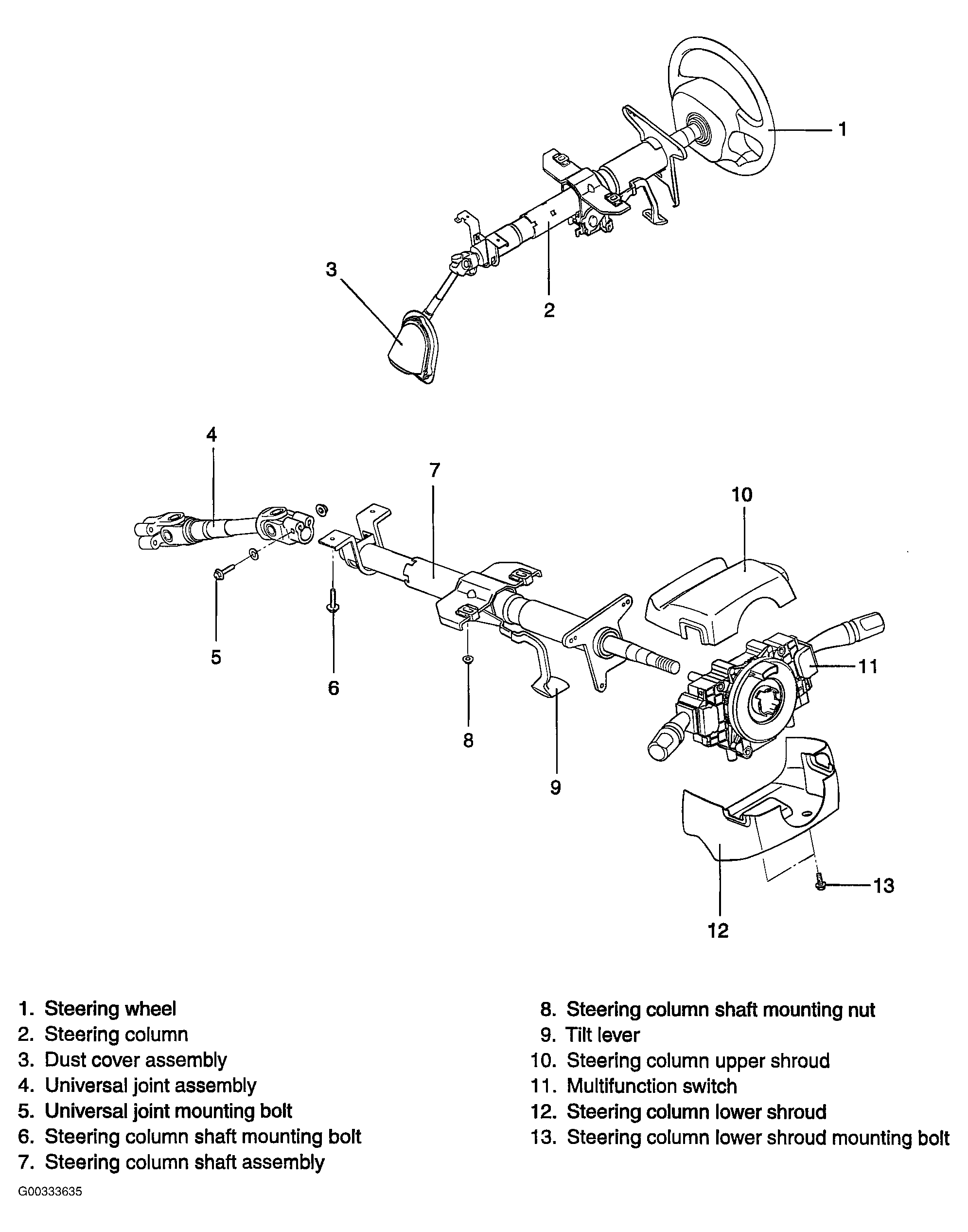

Fig 1: Identifying Steering Column/Shaft Components
G00333635Courtesy of KIA MOTORS AMERICA, INC.
