Components and Components Location: Components

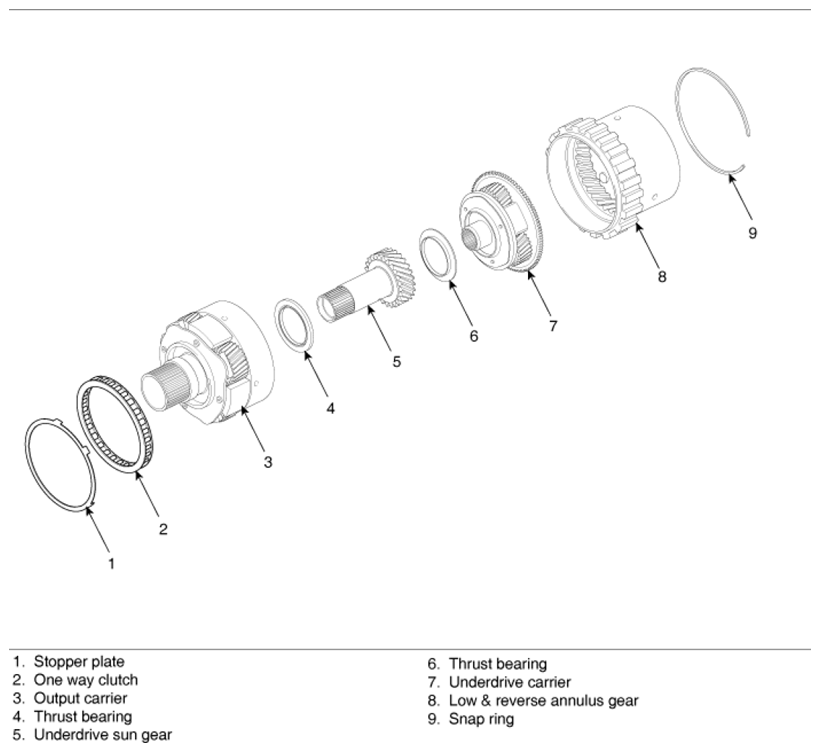

Fig 1: Identifying Planetary Gear Components
G06798937Courtesy of KIA MOTORS AMERICA, INC.
