Components and Components Location: Component

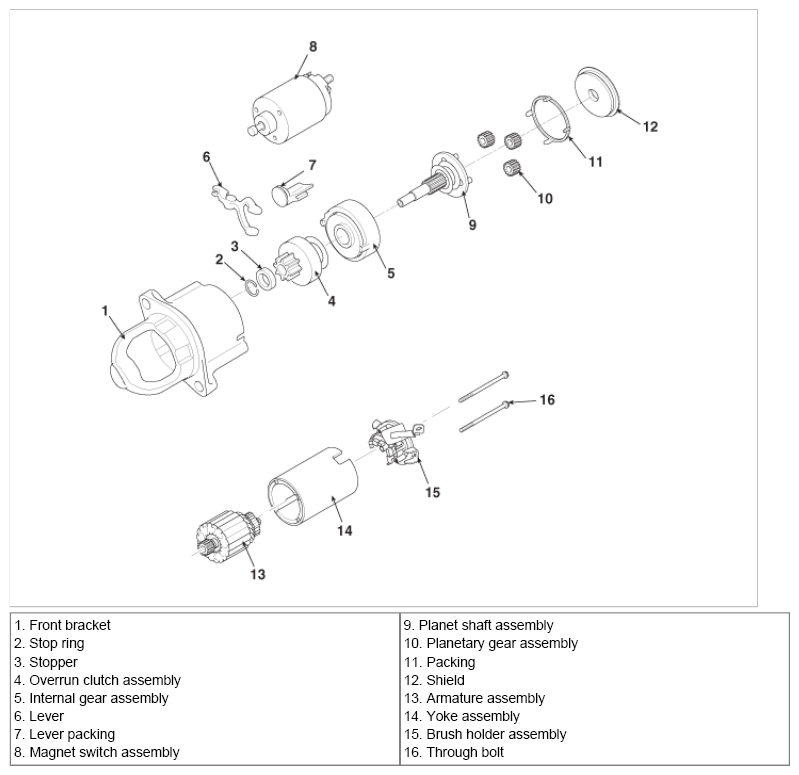

Fig 1: Identifying Starter Components

G06495209

Courtesy of KIA MOTORS AMERICA, INC.
