Components and Component Locations: Component

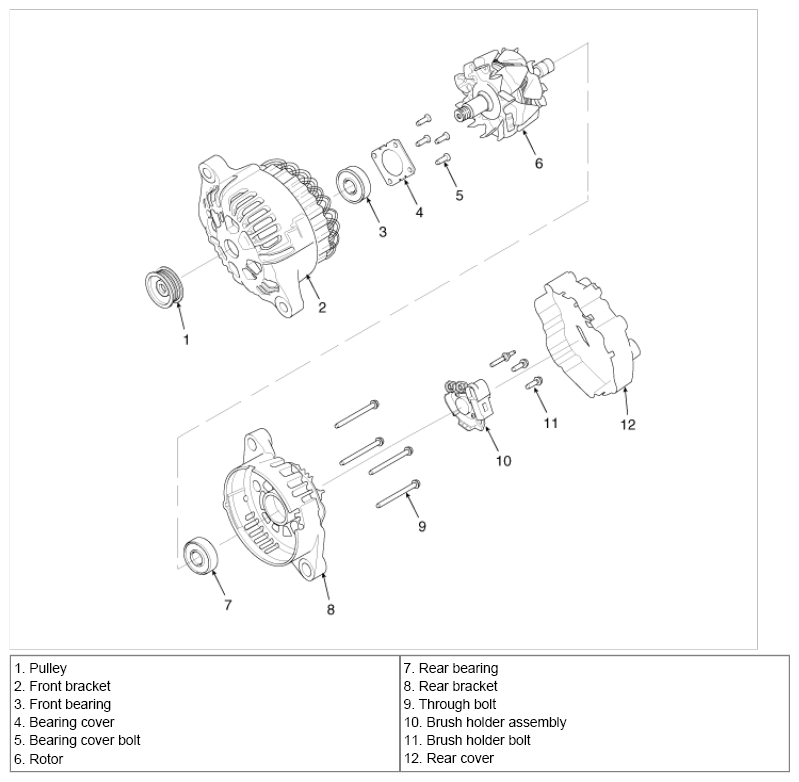

Fig 1: Identifying Alternator Components

G06495188

Courtesy of KIA MOTORS AMERICA, INC.
